Crank Electrodes

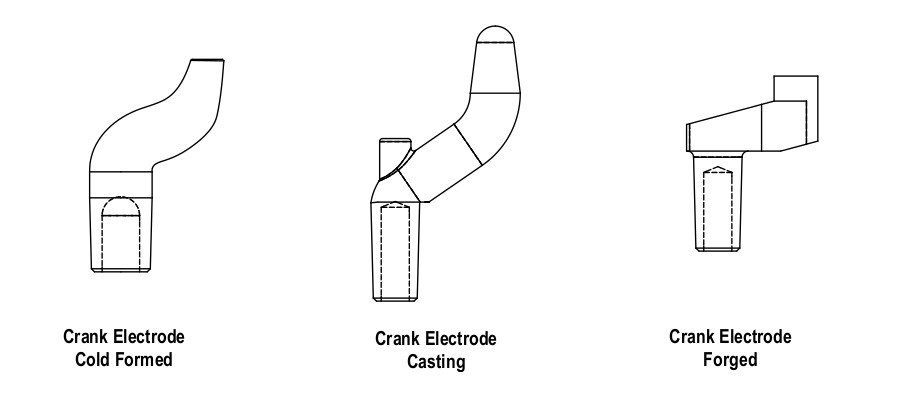

Crank Electrodes are cast or forged offset electrodes designed to weld in hard to reach locations. Since these parts are made from a casting, they can withstand higher weld forces than Standard Double Bend electrodes.
These versatile electrodes are great for a job shop and can in a variety of applications. They are also designed to fit the standard RWMA holders.
Part | Description | RWMA Material Type | RWMA Taper | Nose Type | Overall Length | Outer Diameter | Welding Face Dia. | Offset | Water Hole Diameter | Taper to Bend Length | Bend to Nose Length | Unit of Measure | Cast Part |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
270-16-3871 | 16-3871 CMW | RWMA Class 2 - C18200 | 5RW | C | 2.12500 | 0.62500 | 0.3125 | 0.8750 | 0.37500 | 0.8750 | 0.5000 | IN | No |
286-16-3863 | 16-3863 CMW | RWMA Class 2 - C18200 | 5RW | C | 2.37500 | 0.375 | 1.2500 | 0.37500 | 1.0000 | 0.7500 | IN | Yes | |
286-16-3862 | 16-3862 CMW | RWMA Class 2 - C18200 | 5RW | C | 2.00000 | 0.375 | 1.2500 | 0.37500 | 1.0000 | 0.3750 | IN | Yes | |
286-16-3861 | 16-3861 CMW | RWMA Class 2 - C18200 | 4RW | C | 2.37500 | 0.375 | 1.2500 | 0.28100 | 1.0000 | 0.7500 | IN | Yes | |
286-16-3860 | 16-3860 CMW | RWMA Class 2 - C18200 | 4RW | C | 2.00000 | 0.375 | 1.2500 | 0.28100 | 1.0000 | 0.3750 | IN | Yes | |
286-16-3836 | 16-3836 CMW | RWMA Class 2 - C18200 | 5RW | A | 2.25000 | 0.62500 | .156 inch radius | 1.0000 | 0.37500 | 0.8750 | IN | Yes | |
286-16-38353 | 16-38353 CMW | RWMA Class 2 - C18200 | 5RW | Rectangle | 2.75000 | 0.62500 | 0.375 x 0.5 | 2.1250 | 0.37500 | IN | No | ||
270-16-3874 | 16-3874 CMW | RWMA Class 2 - C18200 | 5RW | C | 1.75000 | 0.4375 | 0.7813 | 0.37500 | 1.0000 | 0.2500 | IN | Yes | |
270-16-3873 | 16-3873 CMW | RWMA Class 2 - C18200 | 4RW | C | 1.75000 | 0.4375 | 0.7813 | 0.28100 | 1.0000 | 0.2500 | IN | Yes | |
270-16-3835 | 16-3835 CMW | RWMA Class 2 - C18200 | 4RW | A | 2.25000 | 0.50000 | .156 inch radius | 1.0000 | 0.28100 | 1.0000 | IN | Yes | |
270-16-3870 | 16-3870 CMW | RWMA Class 2 - C18200 | 4RW | C | 2.00000 | 0.48200 | 0.25 | 0.5938 | 0.8750 | 0.3750 | IN | No | |
270-16-38661 | 16-38661 CMW | RWMA Class 2 - C18200 | 5RW | C | 2.12500 | 0.62500 | 0.40625 | 1.2500 | 0.37500 | 1.1250 | 0.3750 | IN | No |
270-16-3866 | 16-3866 CMW | RWMA Class 2 - C18200 | 5RW | C | 2.43750 | 0.62500 | 0.34375 | 1.2500 | 0.37500 | 1.1250 | 0.6875 | IN | No |
270-16-3838 | 16-3838 CMW | RWMA Class 2 - C18200 | 5RW | A | 2.75000 | 0.50000 | .188 inch radius | 1.0000 | 0.37500 | 1.0000 | IN | Yes | |
270-16-3837 | 16-3837 CMW | RWMA Class 2 - C18200 | 4RW | A | 2.75000 | 0.50000 | .188 inch radius | 1.0000 | 0.28100 | 1.0000 | IN | Yes | |
270-16-38352 | 16-38352 CMW | RWMA Class 2 - C18200 | 5RW | A | 3.00000 | 0.62500 | 0.25 | 1.7500 | 0.37500 | 1.0880 | 1.2500 | IN | No |
270-16-38351 | 16-38351 CMW | RWMA Class 2 - C18200 | 5RW | A | 2.50000 | 0.62500 | .188 inch radius | 1.5000 | 0.37500 | 0.7500 | IN | No |
