• 16-38352 CMW

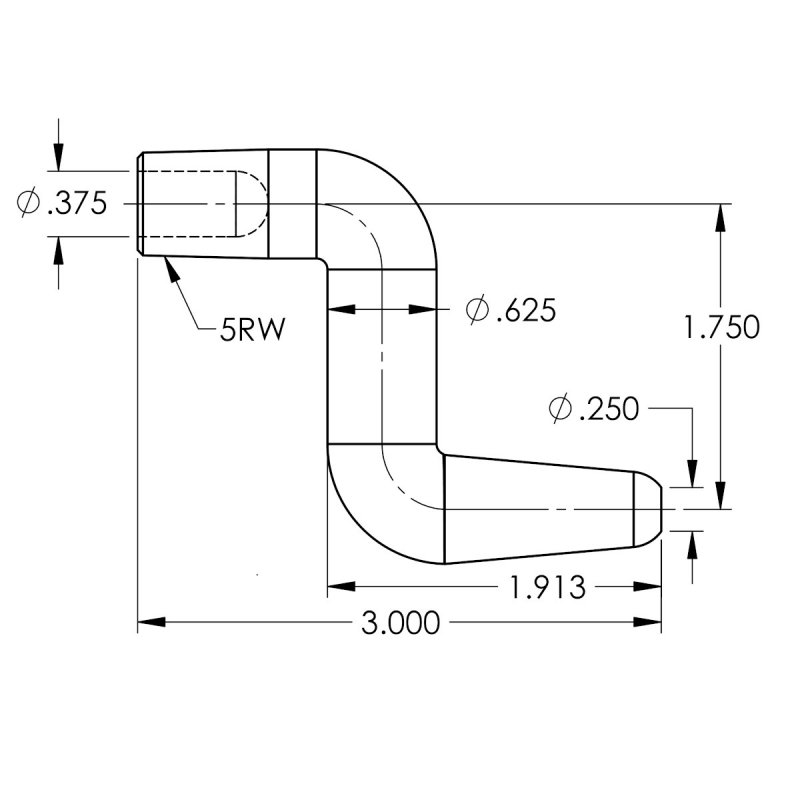

  • Sketch for 16-38352 CMW

16-38352 CMW

Part #: 270-16-38352

Request 3D Model

Request 3D Model

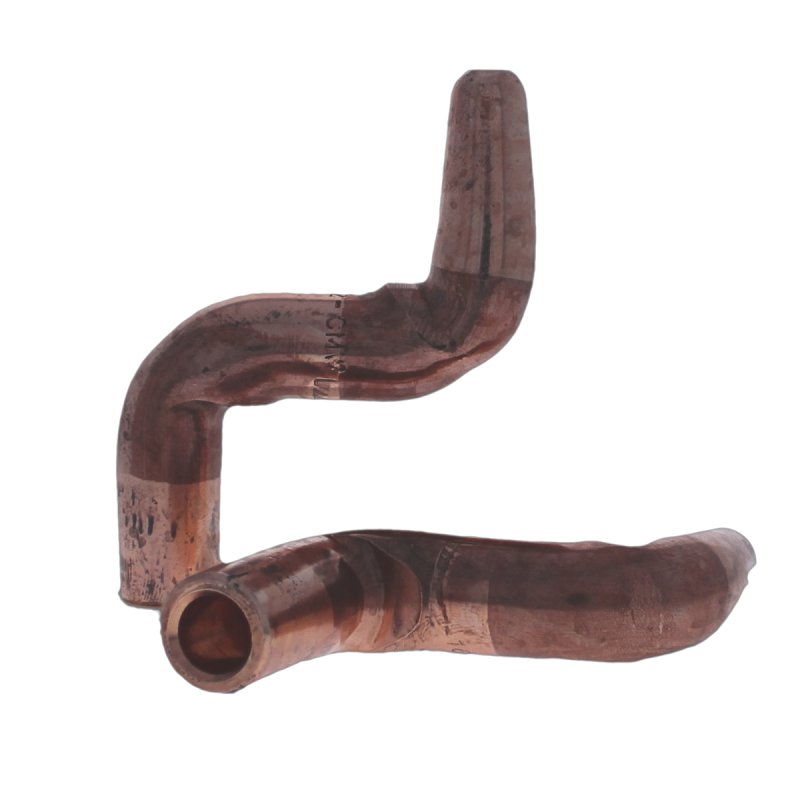

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.000 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.25 IN
  • The offset is 1.75 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Nose Type A
Overall Length 3.00000
Outer Diameter 0.62500
Welding Face Dia. 0.25
Offset 1.7500
Water Hole Diameter 0.37500
Taper to Bend Length 1.0880
Bend to Nose Length 1.2500
Unit of Measure IN
