Part #: 270-16-3874
Request 3D Model

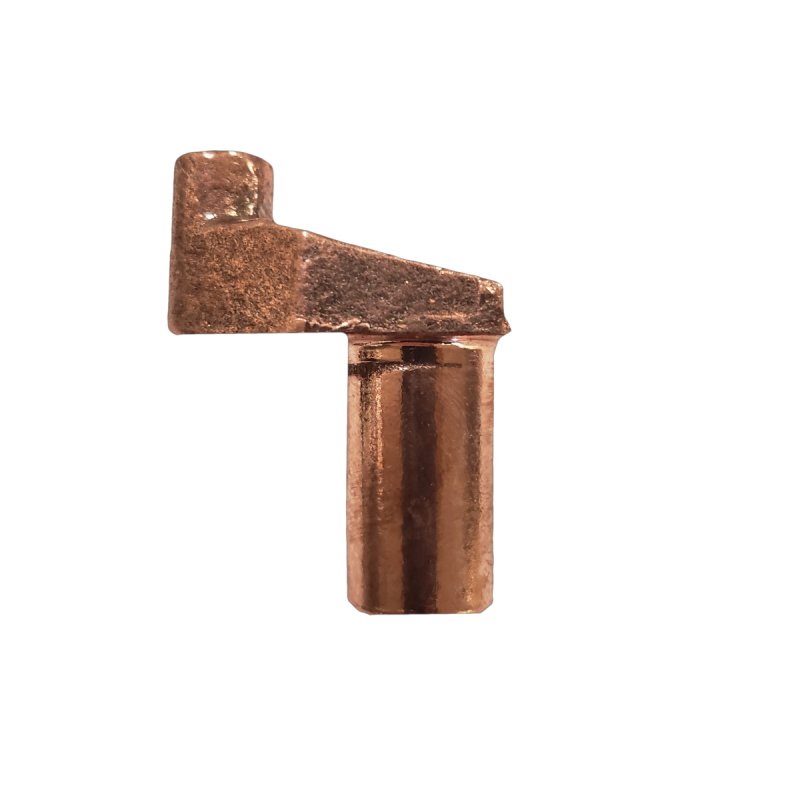

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

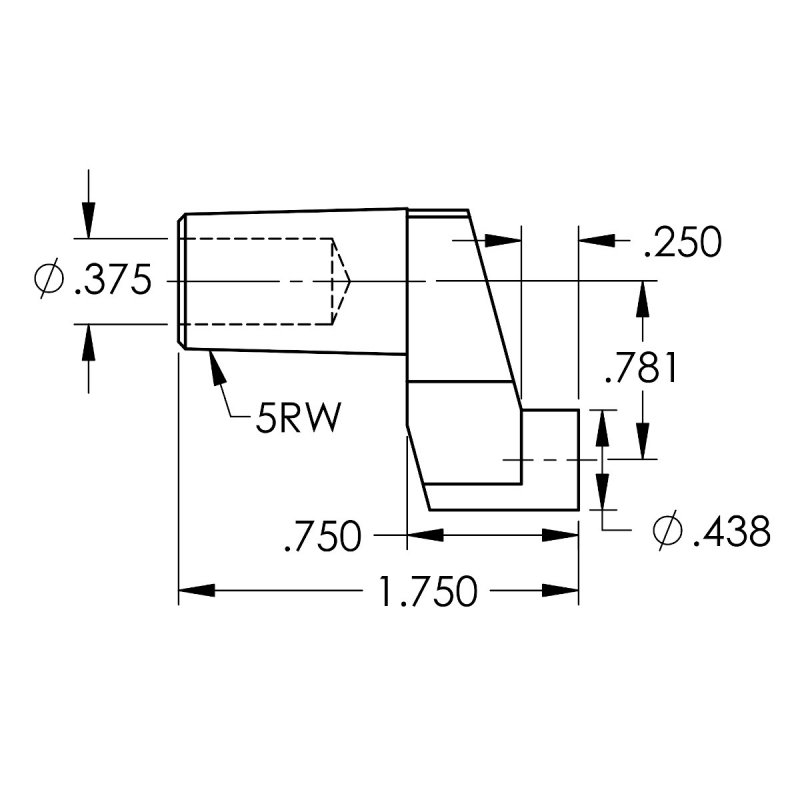

- The overall length is 1.750 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.438 IN
- The offset is 0.78 IN
- The part is made from a casting
|RWMA Material Type||RWMA Class 2 - C18200|
|Welding Face Dia.||0.4375|
|Water Hole Diameter||0.37500|
|Taper to Bend Length||1.0000|
|Bend to Nose Length||0.2500|
|Unit of Measure||IN|
