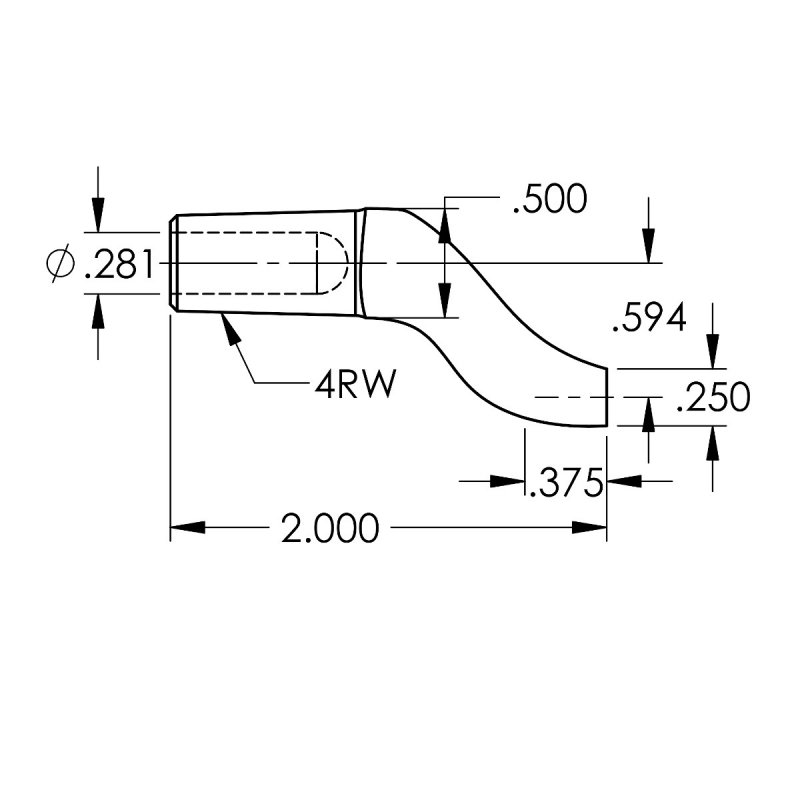

  • Sketch for 16-3870 CMW

16-3870 CMW

Part #: 270-16-3870

Request 3D Model

Request 3D Model

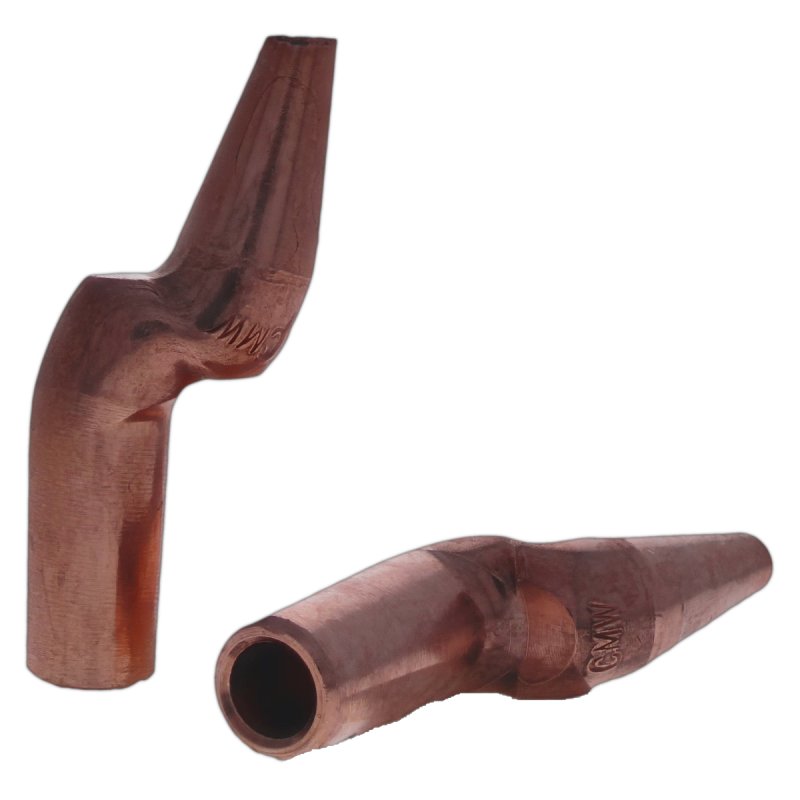

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.000 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.25 IN
  • The offset is 0.59 IN


RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type C
Overall Length 2.00000
Outer Diameter 0.48200
Welding Face Dia. 0.25
Offset 0.5938
Taper to Bend Length 0.8750
Bend to Nose Length 0.3750
Unit of Measure IN
