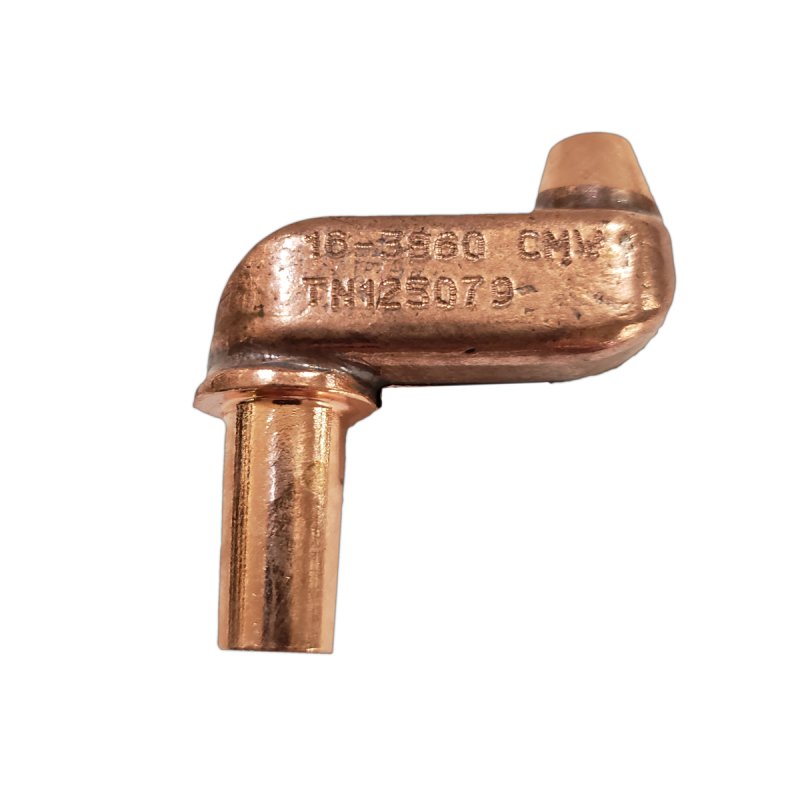

16-3860 CMW

Part #: 286-16-3860

Request 3D Model

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

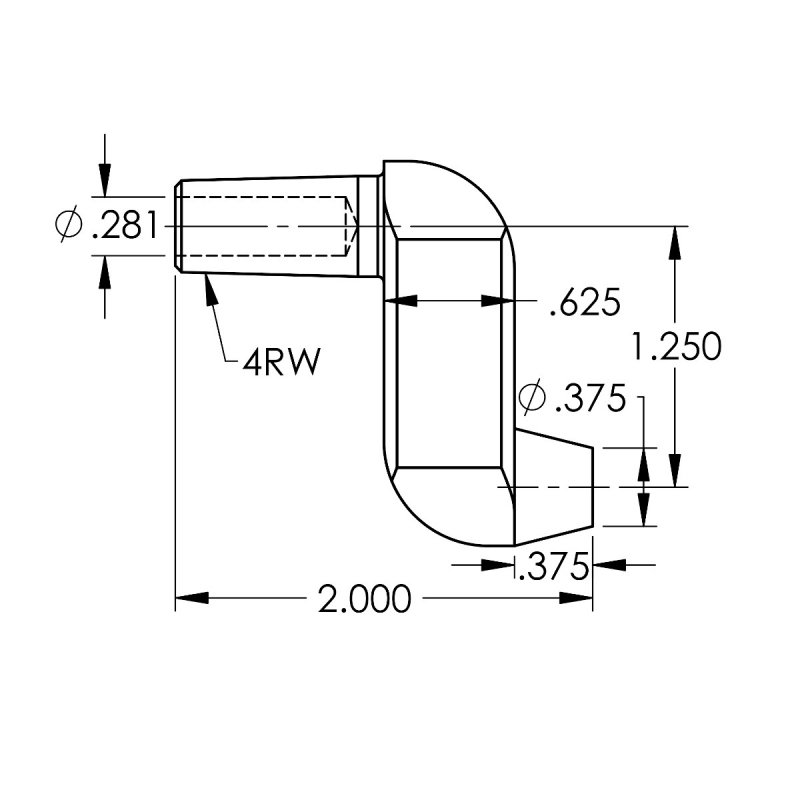

The overall length is 2.000 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 0.375 IN
The offset is 1.25 IN
The part is made from a casting

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	4RW
Nose Type	C
Overall Length	2.00000
Welding Face Dia.	0.375
Offset	1.2500
Water Hole Diameter	0.28100
Taper to Bend Length	1.0000
Bend to Nose Length	0.3750
Unit of Measure	IN
Cast Part	Yes
