• 16-3866 CMW
  • Sketch for 16-3866 CMW

16-3866 CMW

Part #: 270-16-3866

Request 3D Model

Request 3D Model

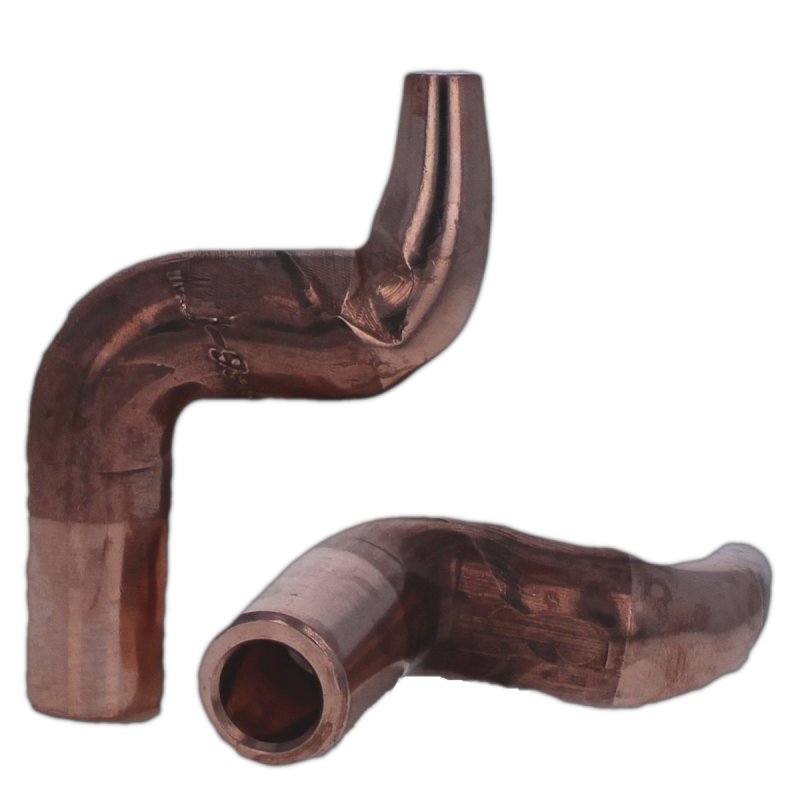

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.438 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.344 IN
  • The offset is 1.25 IN


RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Nose Type C

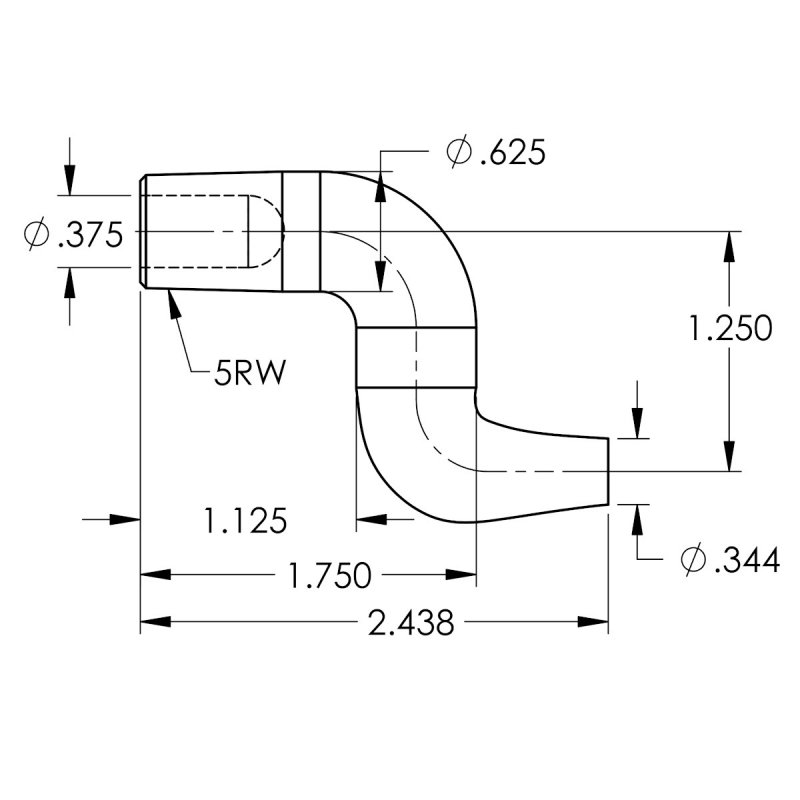

Overall Length 2.43750
Outer Diameter 0.62500
Welding Face Dia. 0.34375
Offset 1.2500
Water Hole Diameter 0.37500
Taper to Bend Length 1.1250
Bend to Nose Length 0.6875
Unit of Measure IN
