16-38351 CMW

Part #: 270-16-38351

Request 3D Model

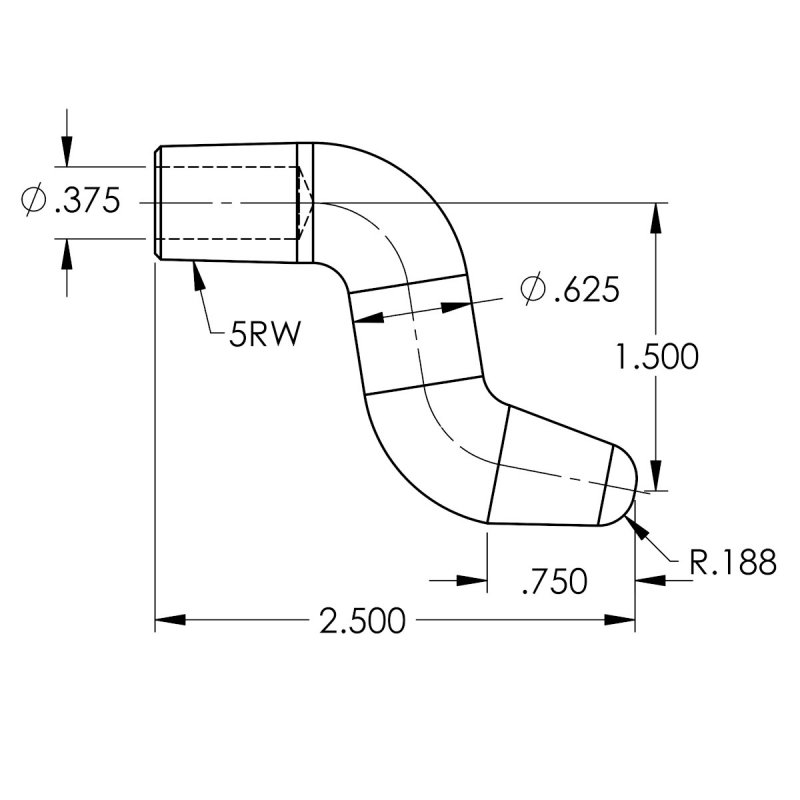

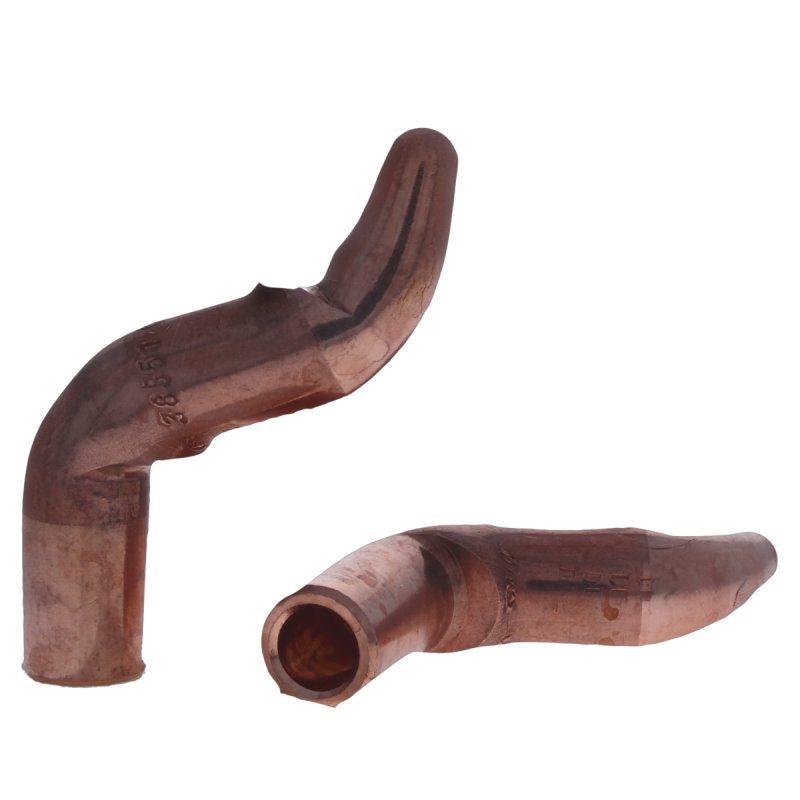

Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.500 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is .188 inch radius IN
The offset is 1.50 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW
Nose Type	A
Overall Length	2.50000
Outer Diameter	0.62500
Welding Face Dia.	.188 inch radius
Offset	1.5000
Water Hole Diameter	0.37500
Bend to Nose Length	0.7500
Unit of Measure	IN
