Threaded Tips

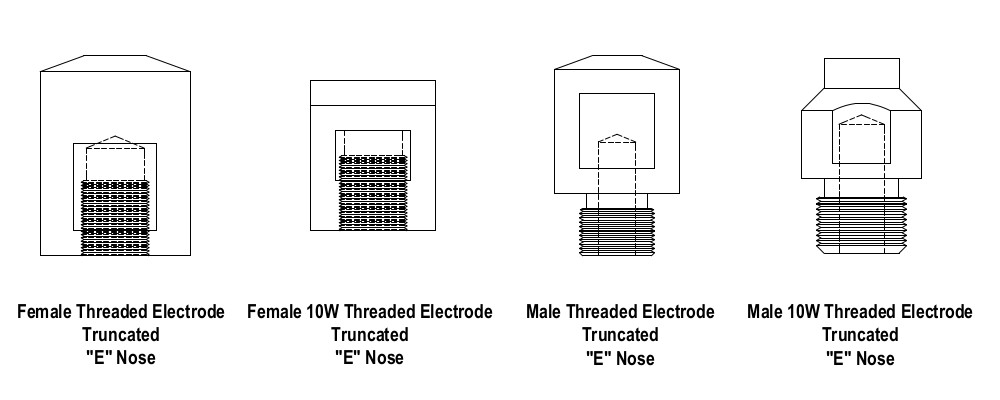

Threaded Tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.
The hexagonal profile of these tips allows users to easily removal the tip with standard shop tools. RWMA tapers may require a Tip Extractor tool to remove the tips with minimal damage to the tip.
Part | Description | Face Refractory Material | RWMA Material Type | Thread Size | Nose Type | Overall Length | Hex Size | Welding Face Dia. | Water Hole Dia. | Water Hole Depth | Wrench Flat Length | Thread Length | Refractory Metal Thickness | Unit of Measure | Nose Angle | Thread Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
285-636312 | 636312 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 1.50000 | 1.5 | 1.000 | 0.2500 | 0.7500 | 0.250 | IN | Female | ||
285-626308 | 626308 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 1.00000 | 0.625 | 1.000 | 0.2500 | 0.7500 | 0.250 | IN | Female | ||
285-625308 | 625308 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 3/4-10 | C | 1.62500 | 1.00000 | 0.625 | 1.188 | 0.6250 | 0.250 | IN | Male | |||
287-335506 | 335506 CMW | RWMA Class 2 - C18200 | 5/8-11 | C | 2.00000 | 0.75000 | 0.75 | 1.250 | 0.4690 | IN | Male | |||||
287-336512 | 336512 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | C | 2.00000 | 1.50000 | 1.500 | 1.250 | 0.7500 | IN | Female | |||||
287-336510 | 336510 CMW | RWMA Class 2 - C18200 | C | 2.00000 | 1.25000 | 1.25 | 1.250 | 0.7500 | IN | Female | ||||||
287-336508 | 336508 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | C | 2.00000 | 1.00000 | 1 | 1.250 | 0.7500 | IN | Female | |||||
287-335512 | 335512 CMW | RWMA Class 2 - C18200 | C | 2.00000 | 1.50000 | 1.5 | 0.50000 | 1.250 | 0.7500 | IN | Male | |||||
287-335510 | 335510 CMW | RWMA Class 2 - C18200 | 3/4-10 | C | 2.00000 | 1.25000 | 1.25 | 0.37500 | 1.250 | 0.6250 | IN | Male | ||||
287-335508 | 335508 CMW | RWMA Class 2 - C18200 | 3/4-10 | C | 2.00000 | 1.00000 | 1 | 0.37500 | 1.250 | 0.6250 | IN | Male | ||||
287-335507 | 335507 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | C | 2.00000 | 0.87500 | 0.875 | 0.31300 | 1.250 | 0.4690 | IN | Male | ||||
285-620307 | 620307 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 0.87500 | 0.5 | 1.000 | 0.5630 | 0.250 | IN | Male | |||
287-330508 | 330508 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | C | 2.00000 | 1.00000 | 1 | 1.250 | 0.5630 | IN | Male | |||||
287-330507 | 330507 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | C | 2.00000 | 0.87500 | 0.875 | 1.250 | 0.5630 | IN | Male | |||||
287-326512 | 326512 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | E | 2.00000 | 1.50000 | 0.625 | 1.250 | 0.7500 | IN | 20.0 | Female | ||||
287-326508 | 326508 CMW | RWMA Class 2 - C18200 | 5/8 - 18 | E | 2.00000 | 1.00000 | 0.375 | 1.250 | 0.7500 | IN | 20.0 | Female | ||||
287-325508 | 325508 CMW | RWMA Class 2 - C18200 | 3/4-10 | E | 2.00000 | 1.00000 | 0.375 | 1.250 | 0.6250 | IN | 20.0 | Male | ||||
287-325507 | 325507 CMW | RWMA Class 2 - C18200 | 5/8-11 | E | 2.00000 | 0.87500 | 0.313 | 1.250 | 0.4690 | IN | 20.0 | Male | ||||
285-636310 | 636310 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 1.25000 | 1.25 | 1.000 | 0.2500 | 0.7500 | 0.250 | IN | Female | ||
285-636308 | 636308 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 1.00000 | 1 | 1.000 | 0.2500 | 0.7500 | 0.250 | IN | Female | ||
285-626310 | 626310 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.50000 | 1.25000 | 0.625 | 1.000 | 0.2500 | 0.7500 | 0.250 | IN | Female | ||
285-625206 | 625206 CMW | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5/8 - 18 | C | 1.25000 | 0.75000 | .500 | 0.31300 | 0.781 | 0.1880 | 0.4690 | 0.188 | IN | Male |
![636312 CMW](/images/products/part-thumbnails/285-636310.jpg)
![626308 CMW](/images/products/part-thumbnails/285-626310.jpg)
![625308 CMW](/images/products/part-thumbnails/285-625206.jpg)
![335506 CMW](/images/products/part-thumbnails/287-335506.jpg)
![336512 CMW](/images/products/part-thumbnails/287-336512.jpg)
![336510 CMW](/images/products/part-thumbnails/287-336510.jpg)
![336508 CMW](/images/products/part-thumbnails/287-336508.jpg)
![335512 CMW](/images/products/part-thumbnails/287-335512.jpg)
![335510 CMW](/images/products/part-thumbnails/287-335510.jpg)
![335508 CMW](/images/products/part-thumbnails/287-335508.jpg)
![335507 CMW](/images/products/part-thumbnails/287-335507.jpg)
![620307 CMW](/images/products/part-thumbnails/285-625206.jpg)
![330508 CMW](/images/products/part-thumbnails/287-330508.jpg)
![330507 CMW](/images/products/part-thumbnails/287-330507.jpg)
![326512 CMW](/images/products/part-thumbnails/287-326508.jpg)
![326508 CMW](/images/products/part-thumbnails/287-326508.jpg)
![325508 CMW](/images/products/part-thumbnails/287-325507.jpg)
![325507 CMW](/images/products/part-thumbnails/287-325507.jpg)
![636310 CMW](/images/products/part-thumbnails/285-636310.jpg)
![636308 CMW](/images/products/part-thumbnails/285-636308.jpg)
![626310 CMW](/images/products/part-thumbnails/285-626310.jpg)
![625206 CMW](/images/products/part-thumbnails/285-625206.jpg)
