636310 CMW

Part #: 285-636310

Request 3D Model

Request 3D Model

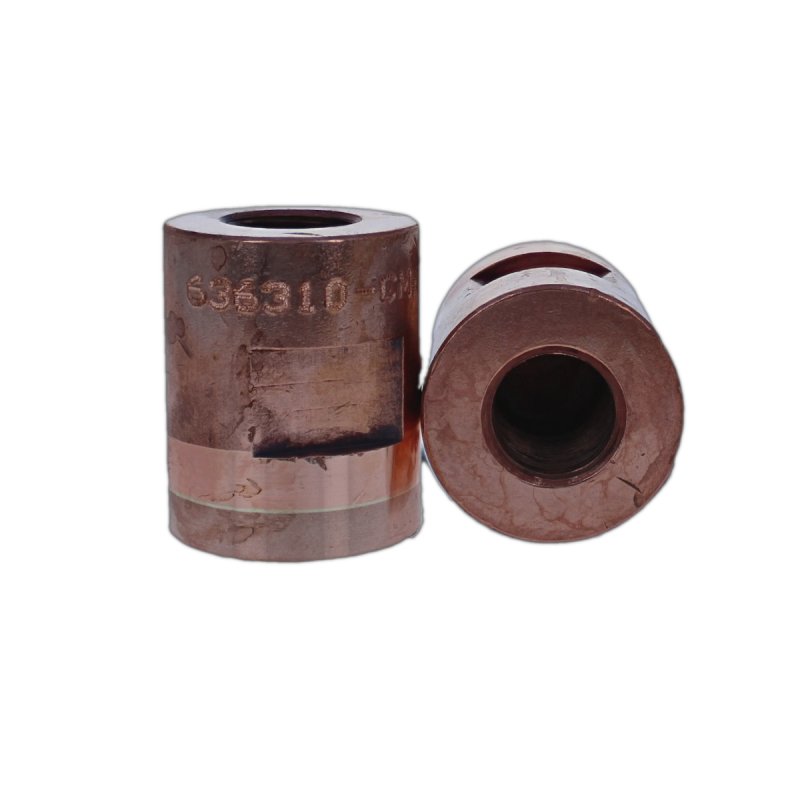

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.

  • The overall length is 1.500 IN
  • The hex width is 1.250 IN
  • The part mounts to the holder via 5/8 - 18 Female threads.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 1.25 IN

Specifications

Face Refractory Material RWMA Class 11 - 10W
RWMA Material Type RWMA Class 2 - C18200
Thread Size 5/8 - 18
Nose Type C
Overall Length 1.50000
Hex Size 1.25000
Welding Face Dia. 1.25
Water Hole Depth 1.000
Wrench Flat Length 0.2500
Thread Length 0.7500
Refractory Metal Thickness 0.250
Unit of Measure IN
Thread Type Female
