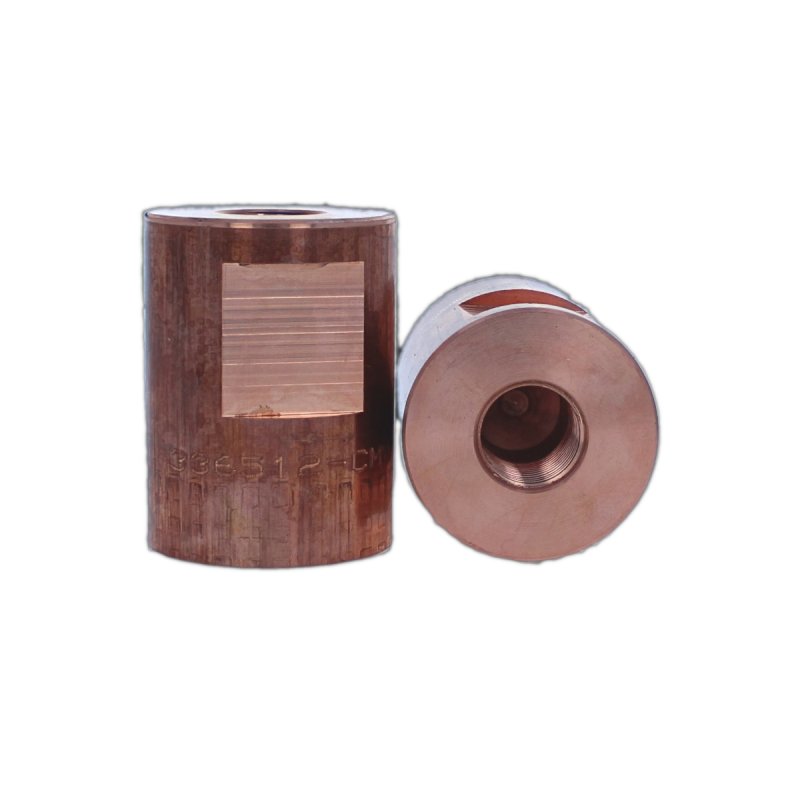

336512 CMW

Part #: 287-336512

Request 3D Model

Request 3D Model


Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.000 IN
  • The hex width is 1.500 IN
  • The part mounts to the holder via 5/8 - 18 Female threads.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 1.500 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
Thread Size 5/8 - 18
Nose Type C
Overall Length 2.00000
Hex Size 1.50000
Welding Face Dia. 1.500
Water Hole Depth 1.250
Thread Length 0.7500
Unit of Measure IN
Thread Type Female
