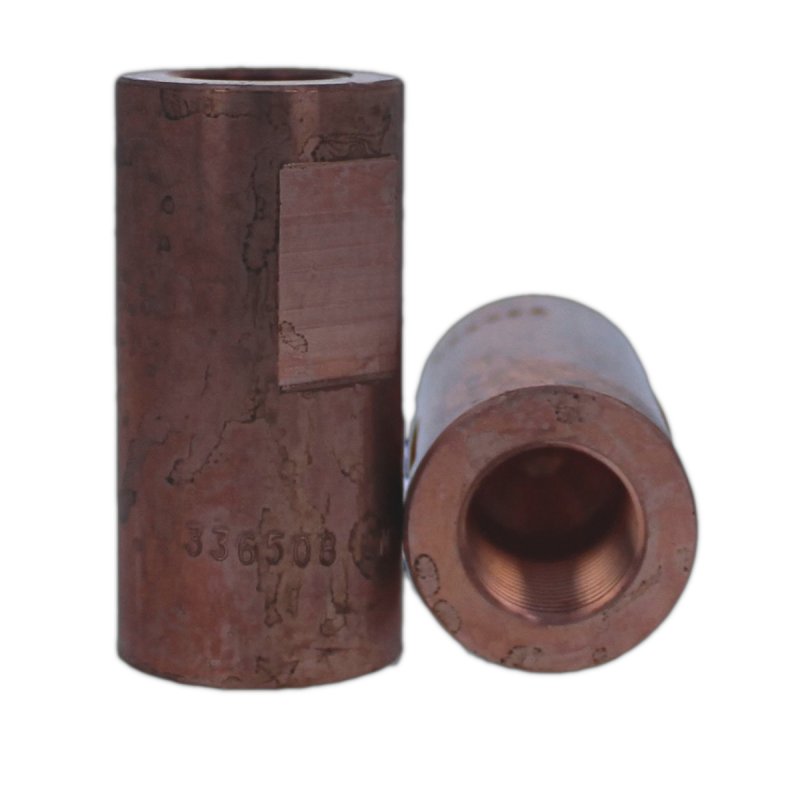

336508 CMW

Part #: 287-336508

Request 3D Model

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.000 IN
The hex width is 1.000 IN
The part mounts to the holder via 5/8 - 18 Female threads.
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 1 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	5/8 - 18
Nose Type	C
Overall Length	2.00000
Hex Size	1.00000
Welding Face Dia.	1
Water Hole Depth	1.250
Thread Length	0.7500
Unit of Measure	IN
Thread Type	Female
