325507 CMW

Part #: 287-325507

Request 3D Model

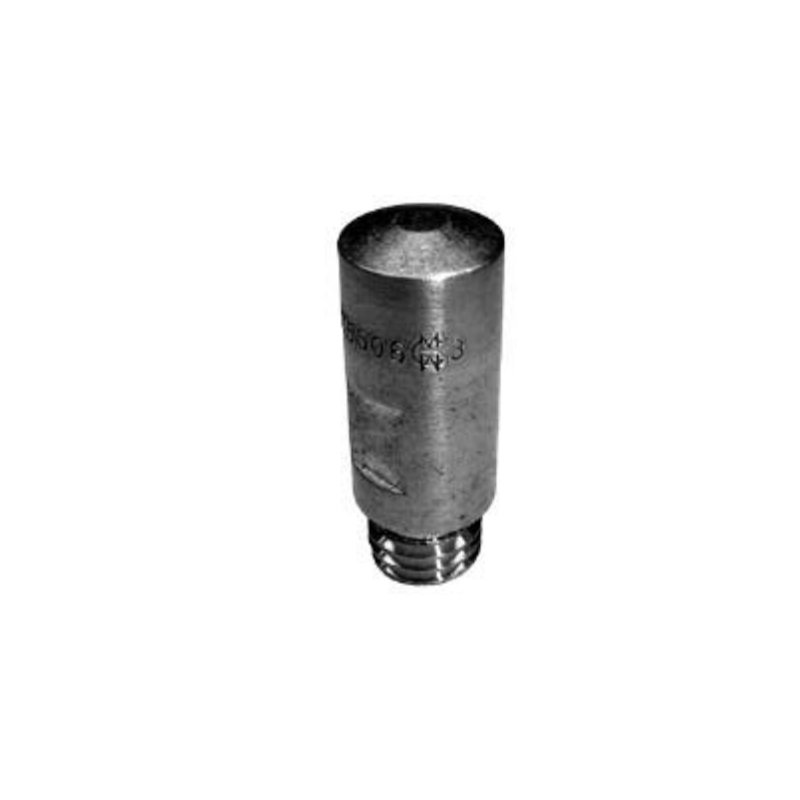

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.000 IN
The hex width is 0.875 IN
The part mounts to the holder via 5/8 -11Male threads.
The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
The weld face is 0.313 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	5/8-11
Nose Type	E
Overall Length	2.00000
Hex Size	0.87500
Welding Face Dia.	0.313
Water Hole Depth	1.250
Thread Length	0.4690
Unit of Measure	IN
Nose Angle	20.0
Thread Type	Male
