620307 CMW

Part #: 285-620307

Request 3D Model

Request 3D Model

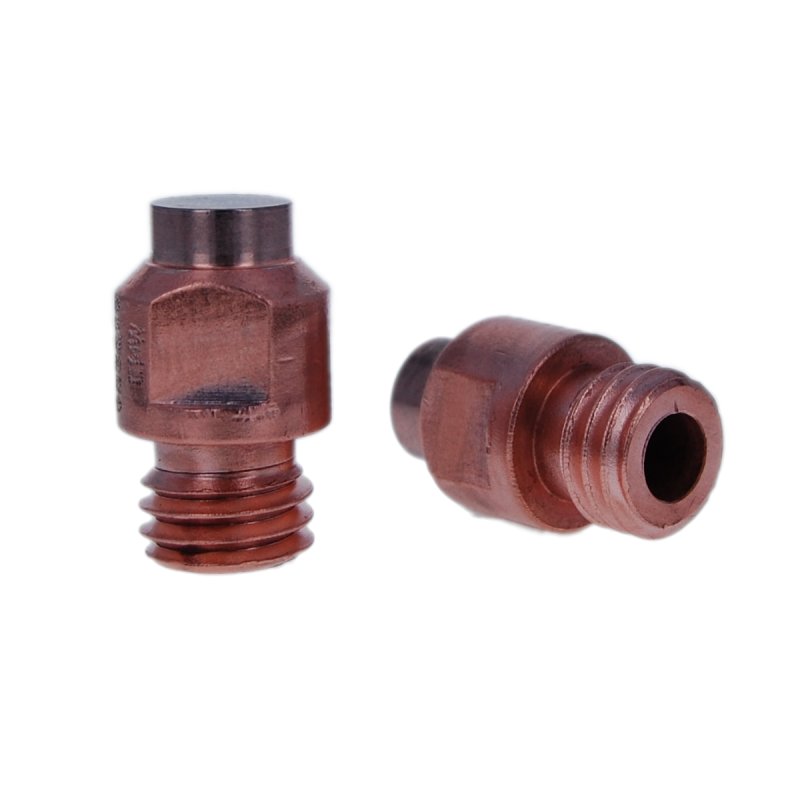

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.

  • The overall length is 1.500 IN
  • The hex width is 0.875 IN
  • The part mounts to the holder via 5/8 - 18Male threads.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.5 IN

Specifications

Face Refractory Material RWMA Class 11 - 10W
RWMA Material Type RWMA Class 2 - C18200
Thread Size 5/8 - 18
Nose Type C
Overall Length 1.50000
Hex Size 0.87500
Welding Face Dia. 0.5
Water Hole Depth 1.000
Thread Length 0.5630
Refractory Metal Thickness 0.250
Unit of Measure IN
Thread Type Male
