Threaded Socket Tips

CMW Threaded Socket Tips

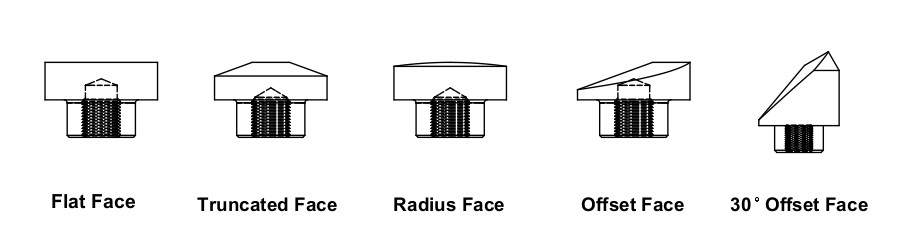

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

They are designed for use with the 900 and 950 Series Paddle Type Holders. The tips are held in place via a cap screw.

Part Description RWMA Material Type Thread Size Nose Type Overall Length [A] Hex Dia. [B] Welding Face Dia. [C] Head Height [R] Unit of Measure Offset / Truncated Angle Nose Engagement Angle
270-18-970
18-970 CMW RWMA Class 1 - C15000 10 - 32 Tap Hold Screw C 0.37500 0.56300 0.563 0.1875 IN
270-18-971
18-971 CMW RWMA Class 1 - C15000 10 - 32 Tap Hold Screw E 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-972
18-972 CMW RWMA Class 1 - C15000 10 - 32 Tap Hold Screw F 0.37500 0.56300 2 IN Radius 0.1875 IN
270-18-973
18-973 CMW RWMA Class 1 - C15000 10 - 32 Tap Hold Screw D 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-980
18-980 CMW RWMA Class 2 - C18200 10 - 32 Tap Hold Screw C 0.37500 0.56300 0.563 0.1875 IN
270-18-981
18-981 CMW RWMA Class 2 - C18200 10 - 32 Tap Hold Screw E 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-982
18-982 CMW RWMA Class 2 - C18200 10 - 32 Tap Hold Screw F 0.37500 0.56300 2 IN Radius 0.1875 IN
270-18-983
18-983 CMW RWMA Class 2 - C18200 10 - 32 Tap Hold Screw D 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-984
18-984 CMW RWMA Class 2 - C18200 10 - 32 Tap Hold Screw H 0.70500 0.55700 0.188 0.5175 IN 30.0
270-18-990
18-990 CMW RWMA Class 3 - C18000 10 - 32 Tap Hold Screw C 0.37500 0.56300 0.563 0.1875 IN
270-18-991
18-991 CMW RWMA Class 3 - C18000 10 - 32 Tap Hold Screw E 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-992
18-992 CMW RWMA Class 3 - C18000 10 - 32 Tap Hold Screw F 0.37500 0.56300 2 IN Radius 0.1875 IN
270-18-993
18-993 CMW RWMA Class 3 - C18000 10 - 32 Tap Hold Screw D 0.37500 0.56300 0.188 0.1875 IN 20.0
270-18-994
18-994 CMW RWMA Class 3 - C18000 10 - 32 Tap Hold Screw H 0.70500 0.55700 0.188 0.5175 IN 30.0
