18-972 CMW
Part #: 270-18-972
Request 3D Model

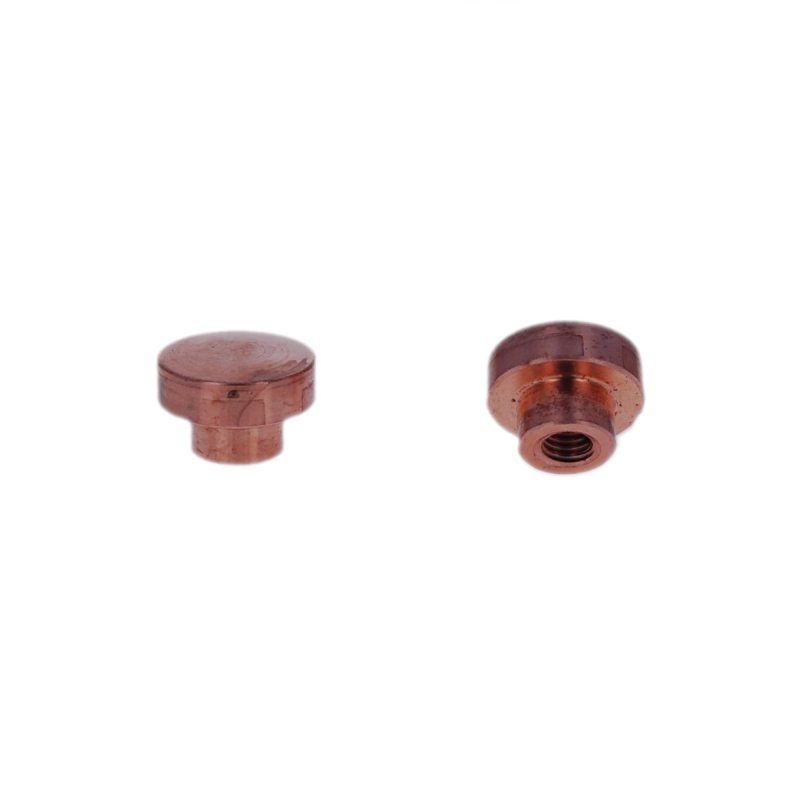

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 0.3750 IN
- The outside diameter is 0.563 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
- The weld face is 2 IN Radius
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| Thread Size | 10 - 32 Tap Hold Screw |
| Nose Type | F |
| Overall Length | 0.37500 |
| Hex Size | 0.56300 |
| Welding Face Dia. | 2 IN Radius |
| Hex Body Length | 0.1875 |
| Unit of Measure | IN |
