18-984 CMW

Part #: 270-18-984

Request 3D Model

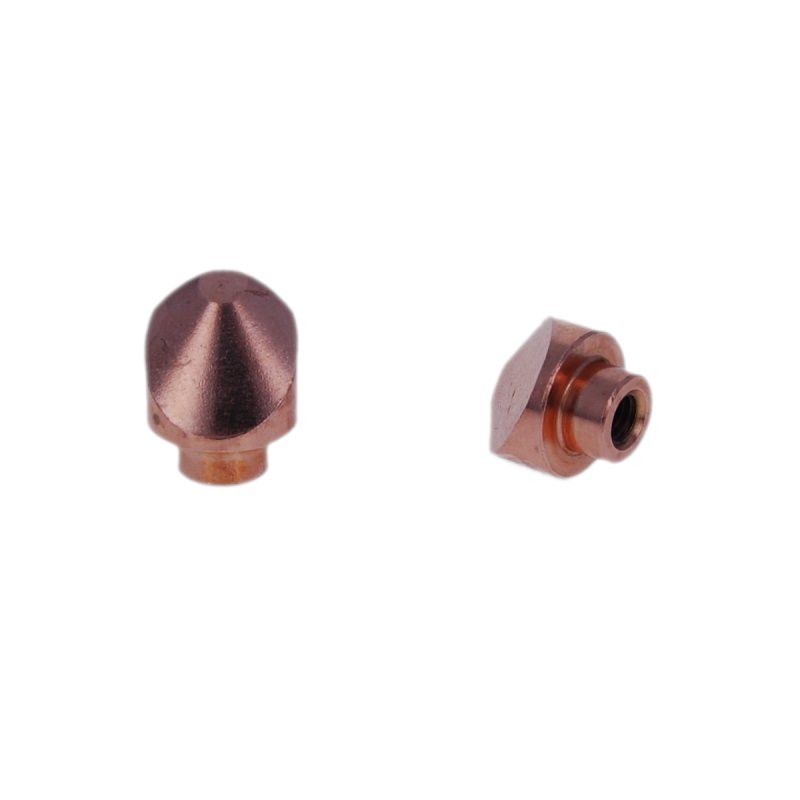

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.7050 IN
The outside diameter is 0.557 IN
A 10 - 32 Tap Hold Screw holds the tip in place
The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
The weld face is 0.188 IN
The engagement angle is 30 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	10 - 32 Tap Hold Screw
Nose Type	H
Overall Length [A]	0.70500
Hex Dia. [B]	0.55700
Welding Face Dia. [C]	0.188
Head Height [R]	0.5175
Unit of Measure	IN
Nose Engagement Angle	30.0
