18-970 CMW
Part #: 270-18-970
Request 3D Model

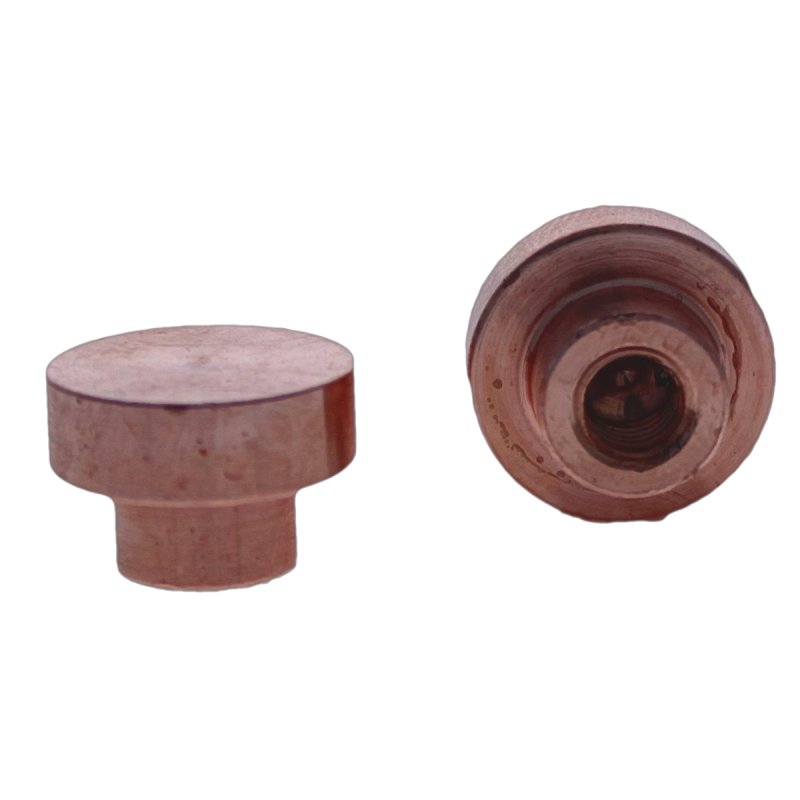

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 0.3750 IN
- The outside diameter is 0.563 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.563 IN
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| Thread Size | 10 - 32 Tap Hold Screw |
| Nose Type | C |

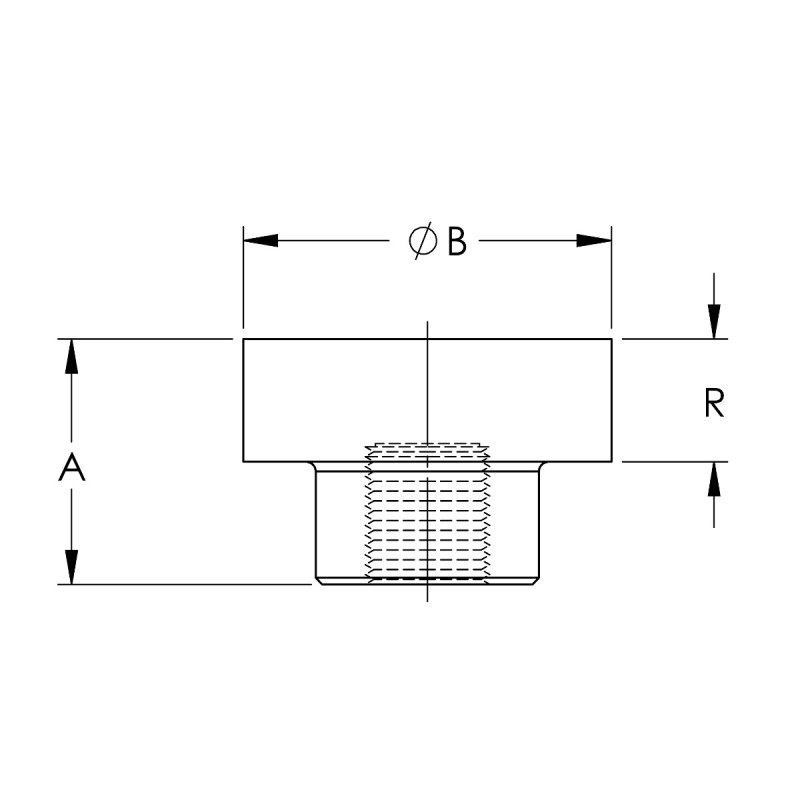

| Overall Length [A] | 0.37500 |
| Hex Dia. [B] | 0.56300 |
| Welding Face Dia. [C] | 0.563 |
| Head Height [R] | 0.1875 |
| Unit of Measure | IN |
