18-981 CMW

Part #: 270-18-981

Request 3D Model

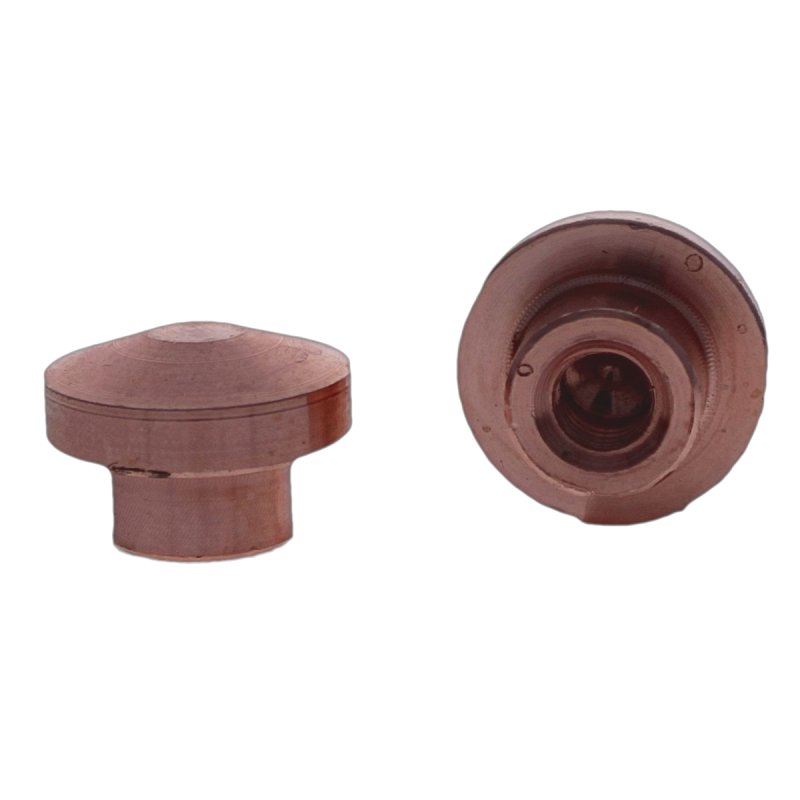

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.3750 IN
The outside diameter is 0.563 IN
A 10 - 32 Tap Hold Screw holds the tip in place
The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
The weld face is 0.188 IN

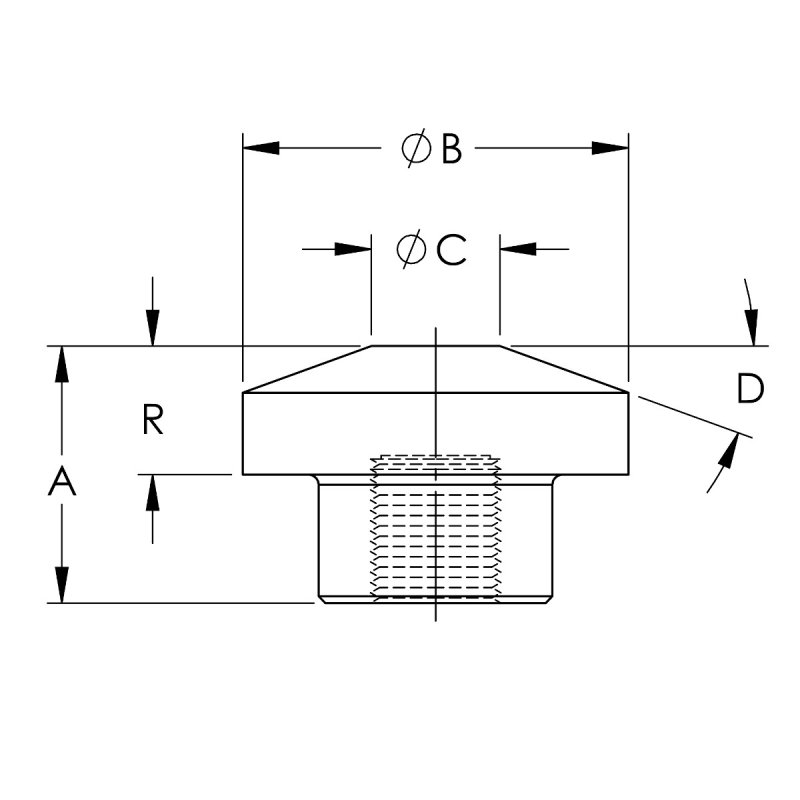

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	10 - 32 Tap Hold Screw
Nose Type	E
Overall Length [A]	0.37500
Hex Dia. [B]	0.56300
Welding Face Dia. [C]	0.188
Head Height [R]	0.1875
Unit of Measure	IN
Offset / Truncated Angle	20.0
