Straight Tips

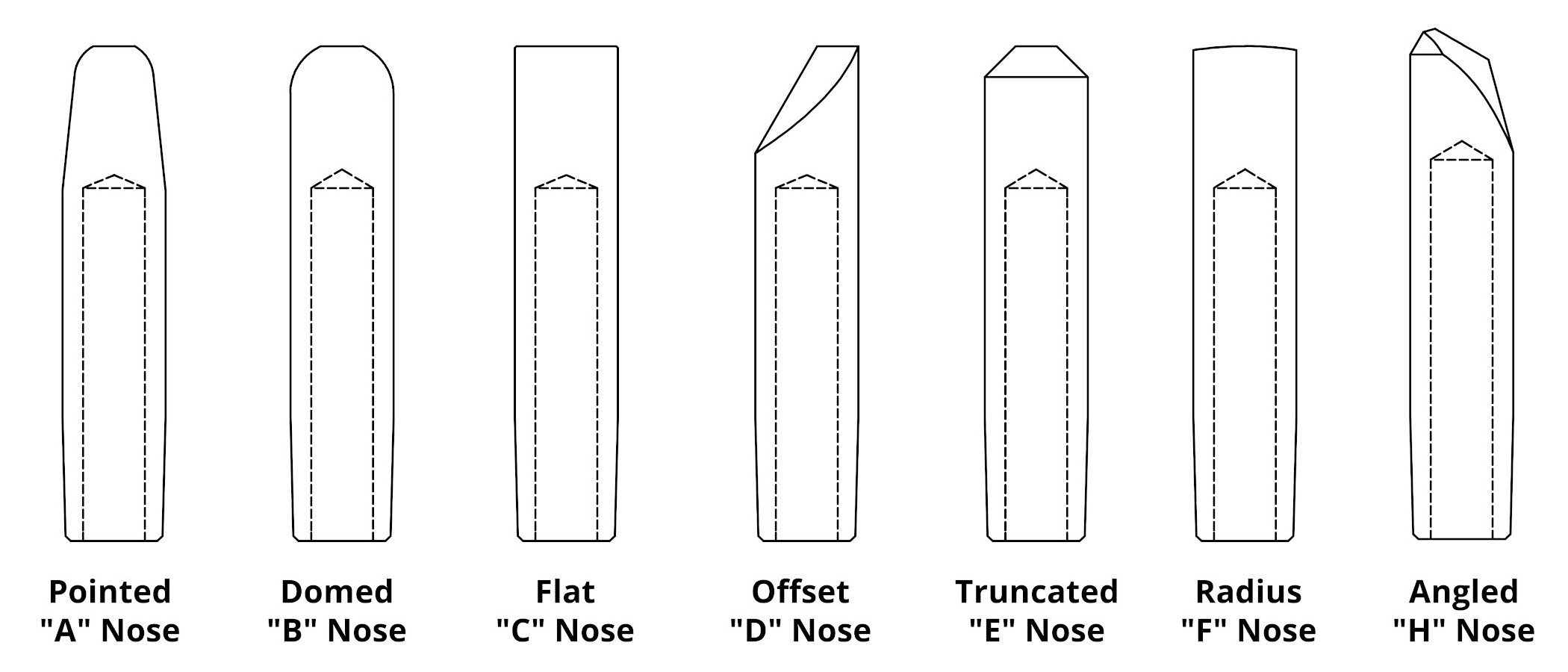

Tuffaloy Straight Electrodes Header

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

Part	Description	RWMA Material Type	RWMA Taper [T]	Nose Type	Overall Length [A]	Outer Diameter [B]	Welding Face Dia. [C]	Water Hole Dia. [E]	Water Hole Depth [F]	Nose Length [G]	Unit of Measure	Offset / Truncated Angle [D]	Nose Engagement Angle [D]
240-1729	1729 CMW	RWMA Class 1 - C15000	5RW	E	3.00000	0.62500	0.25	0.37500	2.250		IN	30.0
250-52116	52116 CMW	RWMA Class 3 - C18000	4RW	A	3.75000	0.48200	0.188	0.28100	3.250	0.7500	IN
250-52114	52114 CMW	RWMA Class 3 - C18000	4RW	A	3.50000	0.48200	0.188	0.28100	3.000	0.7500	IN
250-5211	5211 CMW	RWMA Class 3 - C18000	4RW	A	1.00000	0.48200	0.188	0.28100	0.625	0.3750	IN
245-16-2496	16-2496 CMW	RWMA Class 2 - C18200	7RW	H	3.00000	0.87500	.500	0.50000	2.250		IN		30.0
245-16-2495	16-2495 CMW	RWMA Class 2 - C18200	5RW	H	2.50000	0.62500	.375	0.37500	2.000		IN		30.0
245-16-2494	16-2494 CMW	RWMA Class 2 - C18200	4RW	H	2.00000	0.48200	.250	0.28100	1.500		IN		30.0
245-16-2492	16-2492 CMW	RWMA Class 1 - C15000	5RW	H	2.50000	0.62500	.375	0.37500	2.000		IN		30.0
245-16-2491	16-2491 CMW	RWMA Class 1 - C15000	4RW	H	2.00000	0.48200	.250	0.28100	1.500		IN		30.0
241-3929	3929 CMW	RWMA Class 2 - C18200	5RW	F	3.00000	0.62500	4 inch radius	0.37500	2.250		IN
241-3629	3629 CMW	RWMA Class 2 - C18200	5RW	F	3.00000	0.62500	10 inch radius	0.37500	2.250		IN
241-3627	3627 CMW	RWMA Class 2 - C18200	5RW	F	2.50000	0.62500	10 inch radius	0.37500	1.750		IN
241-3625	3625 CMW	RWMA Class 2 - C18200	5RW	F	2.00000	0.62500	10 inch radius	0.37500	1.250		IN
241-3529	3529 CMW	RWMA Class 2 - C18200	5RW	F	3.00000	0.62500	2 inch radius	0.37500	2.250		IN
241-3527	3527 CMW	RWMA Class 2 - C18200	5RW	F	2.50000	0.62500	2 inch radius	0.37500	1.750		IN
241-3523	3523 CMW	RWMA Class 2 - C18200	5RW	F	1.50000	0.62500	2 inch radius	0.37500	0.750		IN
241-1929	1929 CMW	RWMA Class 1 - C15000	5RW	F	3.00000	0.62500	4 inch radius	0.37500	2.250		IN
241-1925	1925 CMW	RWMA Class 1 - C15000	5RW	F	2.00000	0.62500	4 inch radius	0.37500	1.250		IN
241-1829	1829 CMW	RWMA Class 1 - C15000	5RW	F	3.00000	0.62500	3 inch radius	0.37500	2.250		IN
241-1825	1825 CMW	RWMA Class 1 - C15000	5RW	F	2.00000	0.62500	3 inch radius	0.37500	1.250		IN
241-1629	1629 CMW	RWMA Class 1 - C15000	5RW	F	3.00000	0.62500	10 inch radius	0.37500	2.250		IN
241-1627	1627 CMW	RWMA Class 1 - C15000	5RW	F	2.50000	0.62500	10 inch radius	0.37500	1.750		IN
241-1625	1625 CMW	RWMA Class 1 - C15000	5RW	F	2.00000	0.62500	10 inch radius	0.37500	1.250		IN
241-1623	1623 CMW	RWMA Class 1 - C15000	5RW	F	1.50000	0.62500	10 inch radius	0.37500	0.750		IN
241-16218	16218 CMW	RWMA Class 1 - C15000	5RW	F	4.00000	0.62500	10 inch radius	0.37500	3.250		IN
241-1529	1529 CMW	RWMA Class 1 - C15000	5RW	F	3.00000	0.62500	2 inch radius	0.37500	2.250		IN
241-1527	1527 CMW	RWMA Class 1 - C15000	5RW	F	2.50000	0.62500	2 inch radius	0.37500	1.750		IN
241-1525	1525 CMW	RWMA Class 1 - C15000	5RW	F	2.00000	0.62500	2 inch radius	0.37500	1.250		IN
241-1523	1523 CMW	RWMA Class 1 - C15000	5RW	F	1.50000	0.62500	2 inch radius	0.37500	0.750		IN
241-15218	15218 CMW	RWMA Class 1 - C15000	5RW	F	4.00000	0.62500	2 inch radius	0.37500	3.250		IN
240-3925	3925 CMW	RWMA Class 2 - C18200	5RW	F	2.00000	0.62500	4 inch radius	0.37500	1.250		IN
240-3829	3829 CMW	RWMA Class 2 - C18200	5RW	F	3.00000	0.62500	3 inch radius	0.37500	2.250		IN
240-3825	3825 CMW	RWMA Class 2 - C18200	5RW	F	2.00000	0.62500	10 inch radius	0.37500	1.250		IN
240-3727	3727 CMW	RWMA Class 2 - C18200	5RW	E	2.50000	0.62500	0.25	0.37500	1.750		IN	30.0
240-37218	37218 CMW	RWMA Class 2 - C18200	5RW	E	4.00000	0.62500	0.25	0.37500	3.250		IN	30.0
240-3718	3718 CMW	RWMA Class 2 - C18200	4RW	E	2.75000	0.48200	0.188	0.28100	2.250		IN	30.0
240-3715	3715 CMW	RWMA Class 2 - C18200	4RW	E	2.00000	0.48200	0.188	0.28100	1.500		IN	30.0
240-3712	3712 CMW	RWMA Class 2 - C18200	4RW	E	1.25000	0.48200	0.188	0.28100	0.750		IN	30.0
237-1428	1428 CMW	RWMA Class 1 - C15000	5RW	D	2.75000	0.62500	0.25	0.37500	2.000		IN	30.0
238-3416	3416 CMW	RWMA Class 2 - C18200	4RW	D	2.25000	0.48200	0.188	0.28100	1.750		IN	30.0
238-3415	3415 CMW	RWMA Class 2 - C18200	4RW	D	2.00000	0.48200	0.188	0.28100	1.500		IN	30.0
238-3414	3414 CMW	RWMA Class 2 - C18200	4RW	D	1.75000	0.48200	0.188	0.28100	1.250		IN	30.0
238-3413	3413 CMW	RWMA Class 2 - C18200	4RW	D	1.50000	0.48200	0.188	0.28100	1.000		IN	30.0
238-3412	3412 CMW	RWMA Class 2 - C18200	4RW	D	1.25000	0.48200	0.188	0.28100	0.750		IN	40.0
238-34118	34118 CMW	RWMA Class 2 - C18200	4RW	D	4.00000	0.48200	0.188	0.28100	3.500		IN	30.0
238-34112	34112 CMW	RWMA Class 2 - C18200	4RW	D	3.25000	0.48200	0.188	0.28100	2.750		IN	30.0
238-3411	3411 CMW	RWMA Class 2 - C18200	4RW	D	1.00000	0.48200	0.188	0.28100	0.625		IN	45.0
237-1429	1429 CMW	RWMA Class 1 - C15000	5RW	D	3.00000	0.62500	0.25	0.37500	2.250		IN	30.0
237-14218	14218 CMW	RWMA Class 1 - C15000	5RW	D	4.00000	0.62500	0.25	0.37500	3.250		IN	30.0
237-14222	14222 CMW	RWMA Class 1 - C15000	5RW	D	4.50000	0.62500	0.25	0.37500	3.750		IN	30.0

Page 1 of 7
