• 1729  CMW
  • Sketch for 1729  CMW

1729 CMW

Part #: 240-1729

Request 3D Model

Request 3D Model

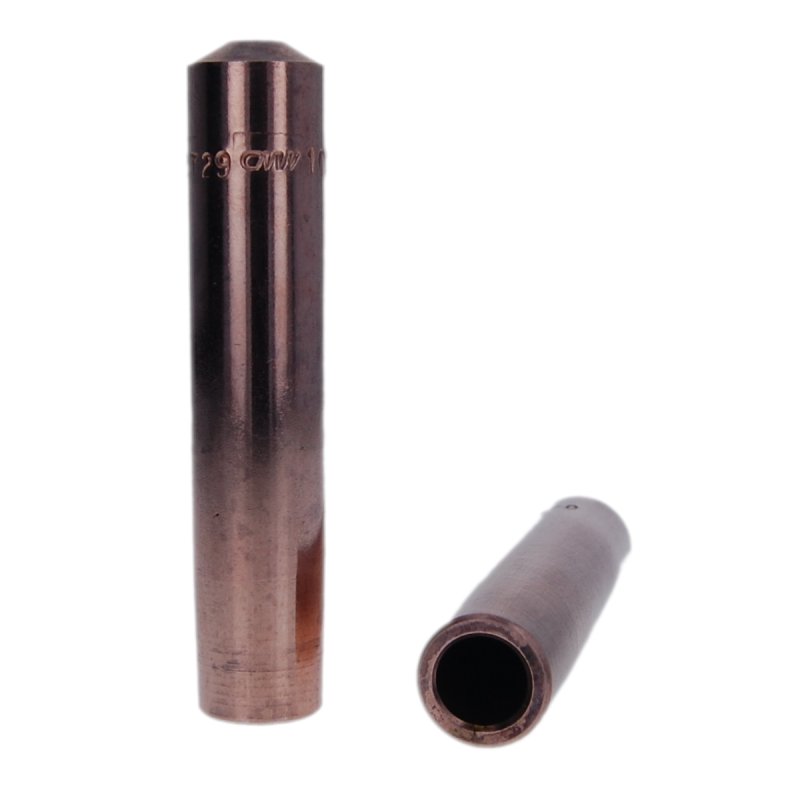

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 3.00 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
  • The weld face is 0.25 IN

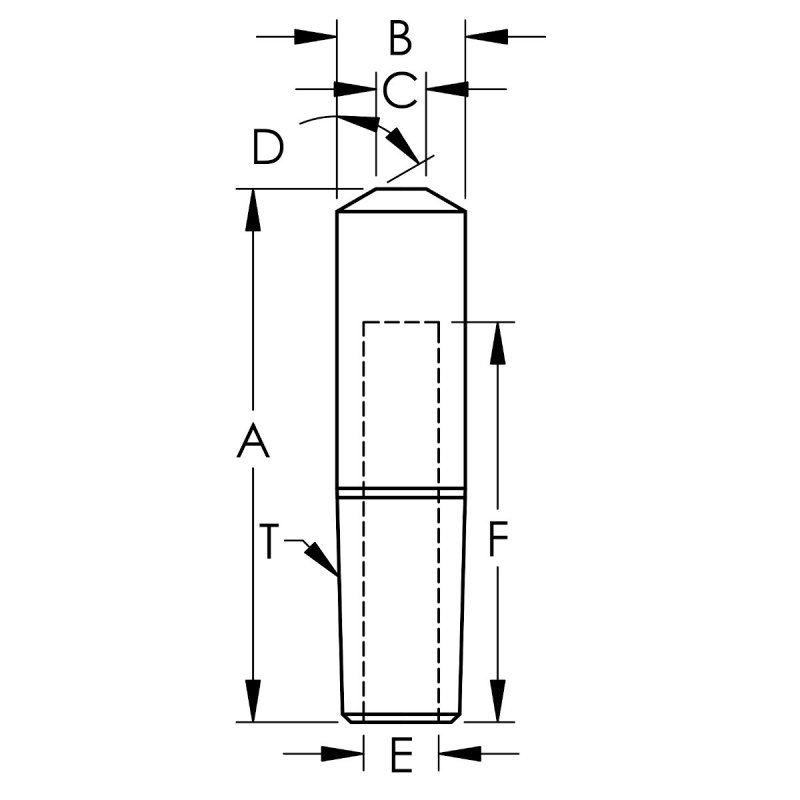

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 5RW
Nose Type E
Overall Length [A] 3.00000
Outer Diameter [B] 0.62500
Welding Face Dia. [C] 0.25
Water Hole Dia. [E] 0.37500
Water Hole Depth [F] 2.250
Unit of Measure IN
Offset / Truncated Angle [D] 30.0
