16-2494 CMW

Part #: 245-16-2494

Request 3D Model

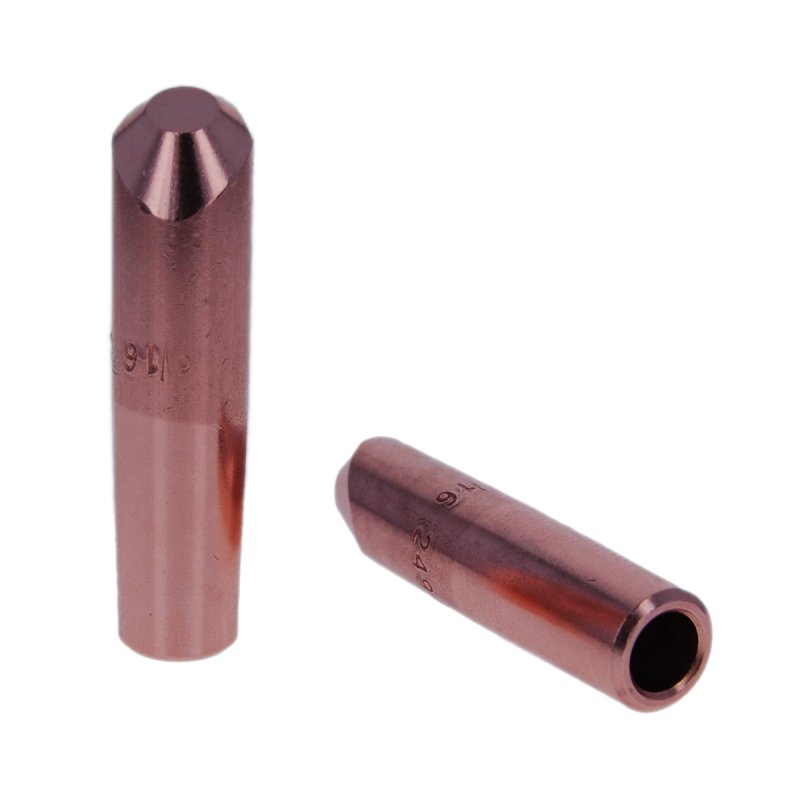

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.00 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
The weld face is 0.250 IN
The engagement angle is 30 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW
Nose Type	H
Overall Length [A]	2.00000
Outer Diameter [B]	0.48200
Welding Face Dia. [C]	.250
Water Hole Dia. [E]	0.28100
Water Hole Depth [F]	1.500
Unit of Measure	IN
Nose Engagement Angle [D]	30.0
