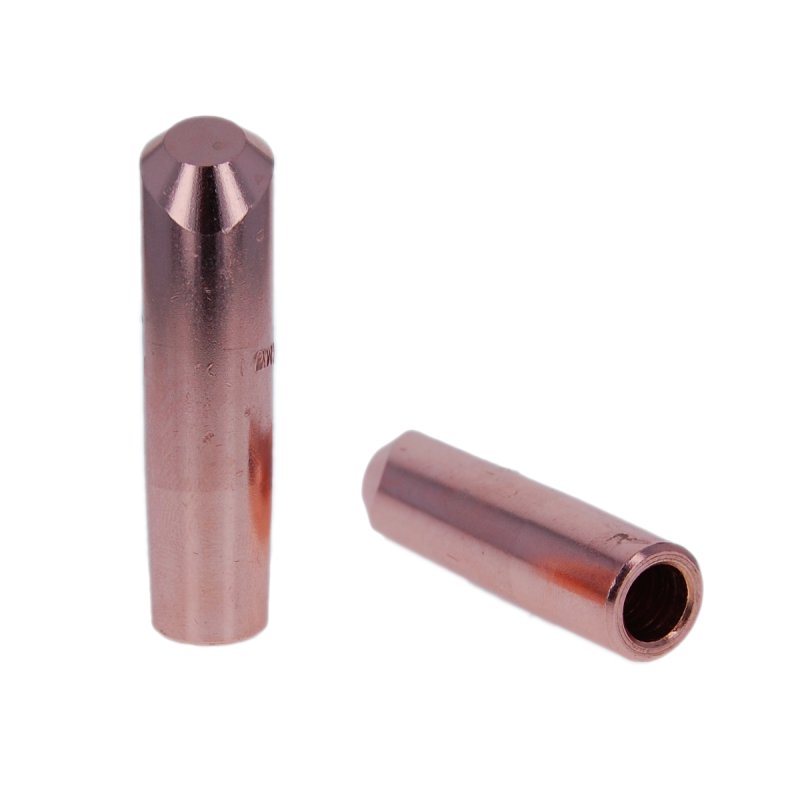

16-2492 CMW

Part #: 245-16-2492

Request 3D Model

Request 3D Model


Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 2.50 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
  • The weld face is 0.375 IN
  • The engagement angle is 30 Degrees

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 5RW
Nose Type H
Overall Length [A] 2.50000
Outer Diameter [B] 0.62500
Welding Face Dia. [C] .375
Water Hole Dia. [E] 0.37500
Water Hole Depth [F] 2.000
Unit of Measure IN
Nose Engagement Angle [D] 30.0
