Swivel Tips
Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

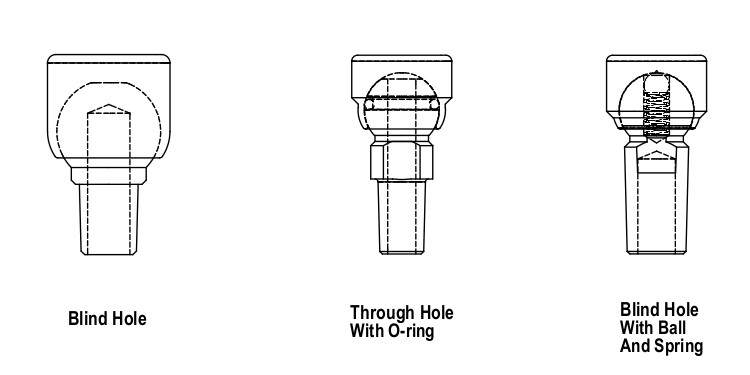

Swivel tips are available in three styles:
- Blind Water Hole Type - low cost model where the cooling water does not make contact with the weld face
- Through Hole with O-Ring - the weld face is directly cooled and an o-ring seals the water inside the head
- Blind Hole with Ball and Spring - the spring loaded design keeps pressure on the swivel weld face for better positioning
| Part | Description | RWMA Material Type | RWMA Taper [T] | Overall Length [A] | Welding Face Dia. [B] | Water Hole Dia. [E] | Unit of Measure | O-ring | Spring |
|---|---|---|---|---|---|---|---|---|---|
| 282-16-23119 | 16-23119 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.25 | 0.37500 | IN | No | Yes |
| 282-16-23179 | 16-23179 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.5 | 0.37500 | IN | No | Yes |
| 282-16-23169 | 16-23169 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1.5 | 0.28125 | IN | No | Yes |
| 282-16-2316 | 16-2316 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.5 | 0.37500 | IN | No | No |
| 282-16-2315 | 16-2315 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 0.875 | 0.37500 | IN | No | No |
| 282-16-2314 | 16-2314 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 0.875 | 0.28125 | IN | No | No |
| 282-16-23139 | 16-23139 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1 | 0.37500 | IN | No | Yes |
| 282-16-2313 | 16-2313 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1 | 0.37500 | IN | No | No |
| 282-16-23129 | 16-23129 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1 | 0.28125 | IN | No | Yes |
| 282-16-2312 | 16-2312 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1 | 0.28125 | IN | No | No |
| 282-16-2300 | 16-2300 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1.25 | 0.28125 | IN | Yes | No |
| 282-16-2311 | 16-2311 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.25 | 0.37500 | IN | No | No |
| 282-16-23109 | 16-23109 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1.25 | 0.28125 | IN | No | Yes |
| 282-16-2310 | 16-2310 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1.25 | 0.28125 | IN | No | No |
| 282-16-2306 | 16-2306 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.5 | 0.37500 | IN | Yes | No |
| 282-16-2305 | 16-2305 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 0.875 | 0.37500 | IN | Yes | No |
| 282-16-2304 | 16-2304 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 0.875 | 0.28125 | IN | Yes | No |
| 282-16-2303 | 16-2303 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1 | 0.37500 | IN | Yes | No |
| 282-16-2302 | 16-2302 CMW | RWMA Class 2 - C18200 | 4RW | 2.01563 | 1 | 0.28125 | IN | Yes | No |
| 282-16-2301 | 16-2301 CMW | RWMA Class 2 - C18200 | 5RW | 2.01563 | 1.25 | 0.37500 | IN | Yes | No |
