16-2300 CMW

Part #: 282-16-2300

Request 3D Model

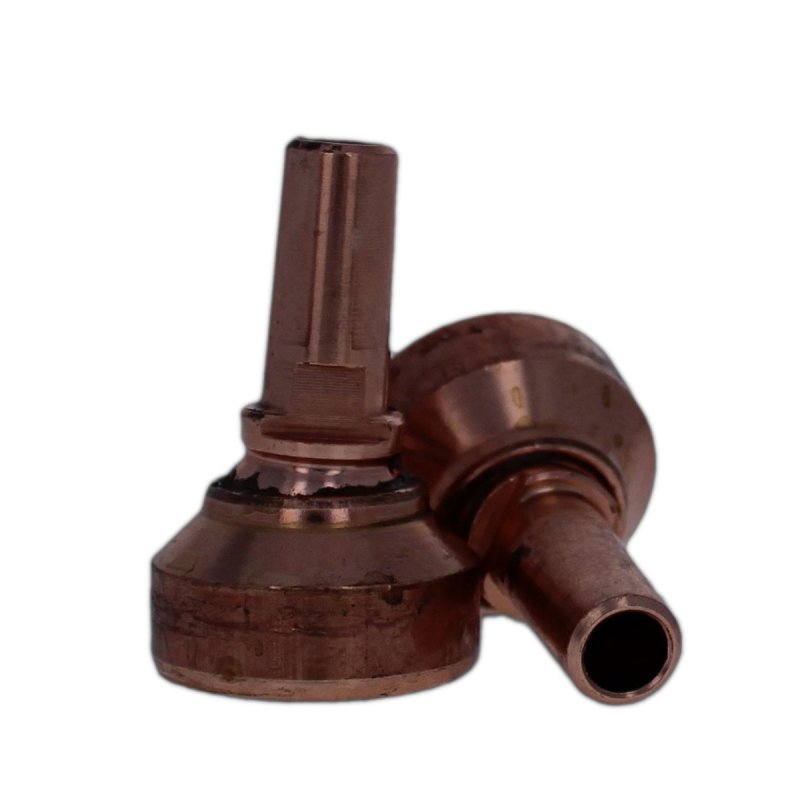

Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.016 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The weld face is 1.25 IN
For better cooling of the weld face, water contacts the head and an o-ring is used to seal it
For better cooling of the weld face, water contacts the head and an o-ring is used to seal it

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW
Overall Length [A]	2.01563
Welding Face Dia. [B]	1.25
Water Hole Dia. [E]	0.28125
Unit of Measure	IN
O-ring	Yes
