16-2303 CMW

Part #: 282-16-2303

Request 3D Model

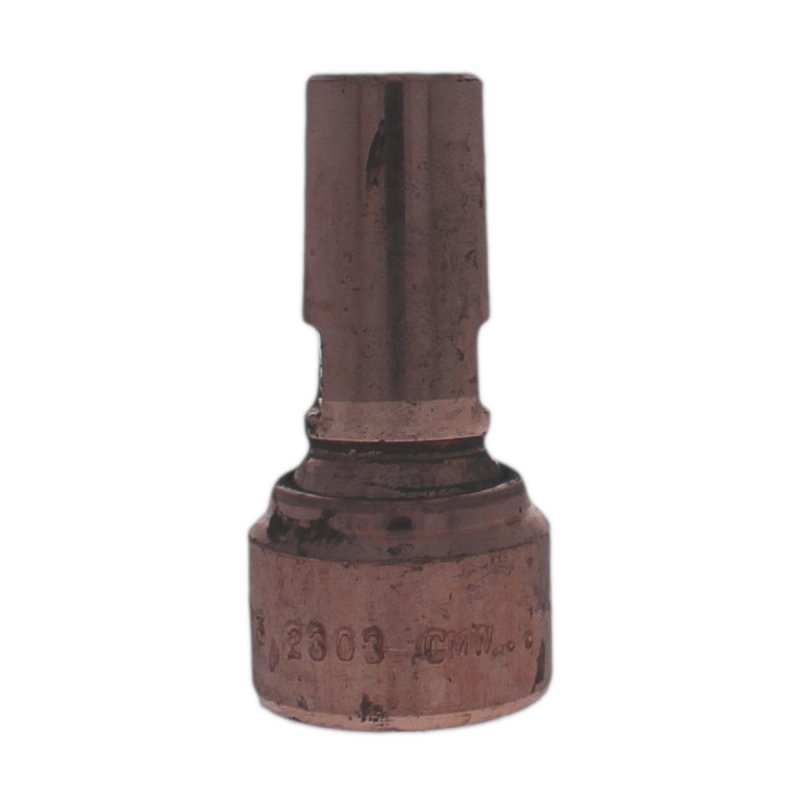

Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.016 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The weld face is 1 IN
For better cooling of the weld face, water contacts the head and an o-ring is used to seal it

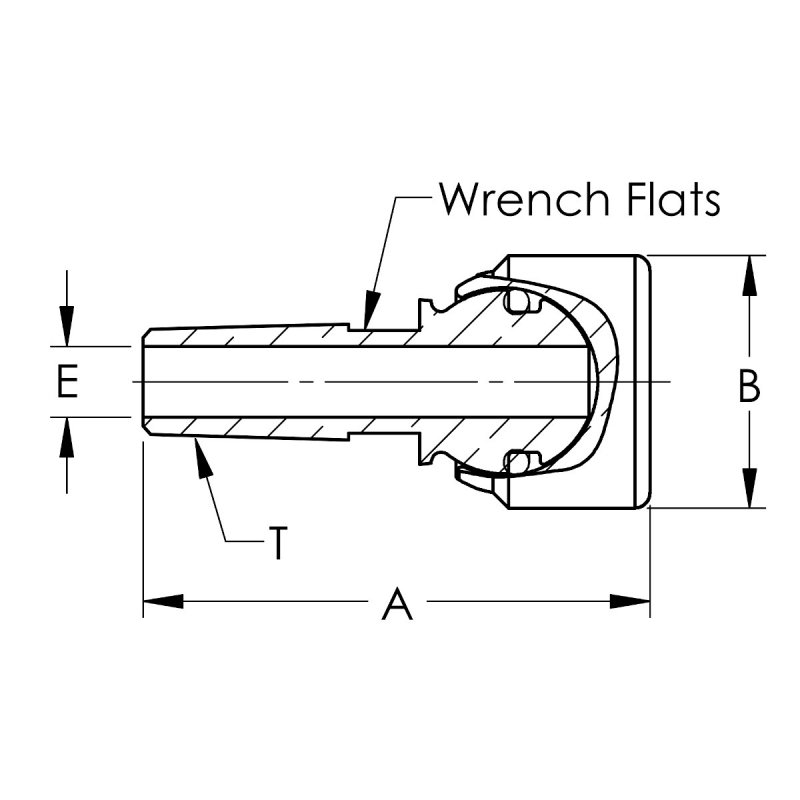

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	5RW
Overall Length [A]	2.01563
Welding Face Dia. [B]	1
Water Hole Dia. [E]	0.37500
Unit of Measure	IN
O-ring	Yes
