16-2313 CMW
Part #: 282-16-2313
Request 3D Model

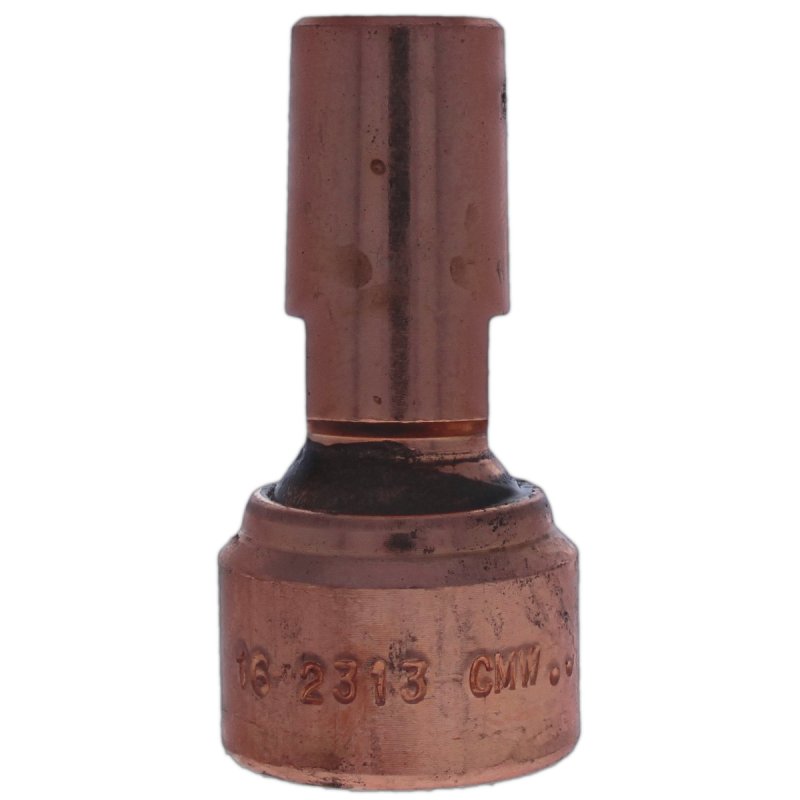

Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 2.016 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1 IN
- The part has a 1.5 IN deep blind hole for cooling the face

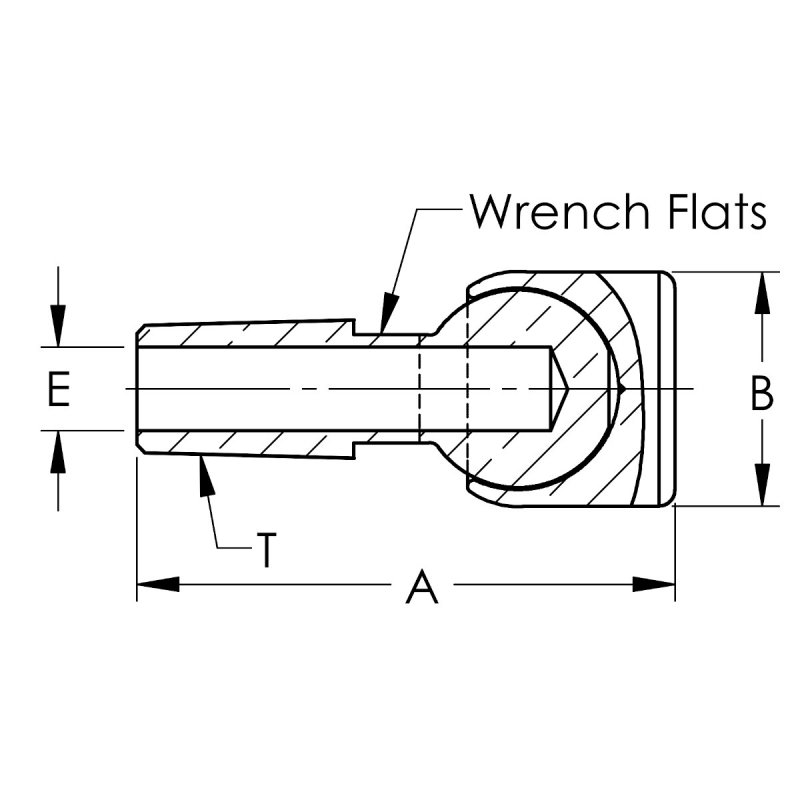

Specifications
| RWMA Material Type | RWMA Class 2 - C18200 |
|---|---|
| RWMA Taper [T] | 5RW |
| Overall Length [A] | 2.01563 |
| Welding Face Dia. [B] | 1 |
| Water Hole Dia. [E] | 0.37500 |
| Unit of Measure | IN |
