Tee Connectors

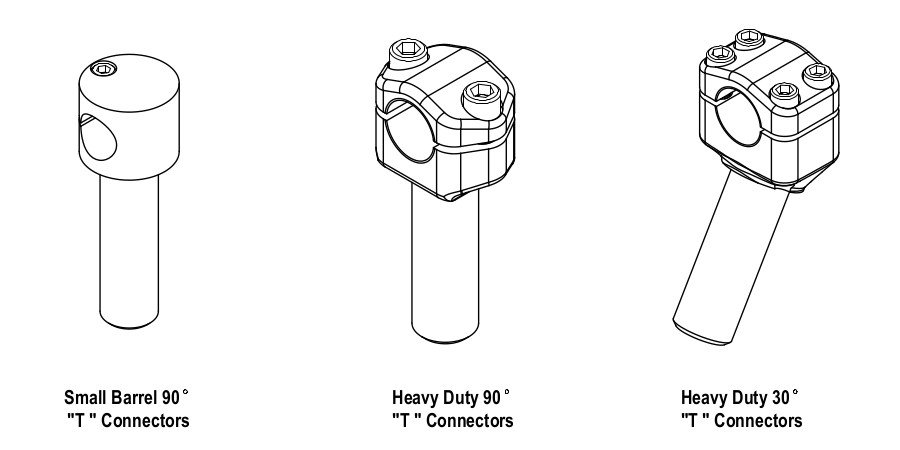

Tee Connectors are a structural component designed to hold Straight Holders or Paddle Type Holders. This allows users maximum versatility to configure the tooling of a Rocker Arm or Pedestal welder to reach deep in the most difficult parts.
| Part | Description | RWMA Material Type | Shank Diameter | Hole Diameter | Overall Length | Diameter of Clamp Body (Round) | Width of Clamp Body (Standard) | Shank Length | Unit of Measure | Engagement Angle | Nickel Plated |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 292-18-727-1 | 18-727-1 CMW | RWMA Class 3 | 1.00 | 1.25 | 5.50000 | 1.75000 | 3.500 | IN | 90.0 | Yes | |
| 292-18-722 | 18-722 CMW | RWMA Class 2 | 1 | 0.75 | 4.25000 | 1.50000 | 3.000 | IN | 90.0 | Yes | |
| 292-18-723 | 18-723 CMW | RWMA Class 2 | 1.25 | 0.75 | 4.25000 | 1.50000 | 3.000 | IN | 90.0 | Yes | |
| 292-18-724 | 18-724 CMW | RWMA Class 2 | 1.5 | 0.75 | 4.25000 | 1.50000 | 3.000 | IN | 90.0 | Yes | |
| 292-18-725 | 18-725 CMW | RWMA Class 3 | 0.875 | 1 | 4.75000 | 1.50000 | 3.000 | IN | 90.0 | Yes | |
| 292-18-726 | 18-726 CMW | RWMA Class 3 | 1 | 1 | 4.75000 | 1.50000 | 3.000 | IN | 90.0 | Yes | |
| 292-18-727 | 18-727 CMW | RWMA Class 3 | 1.25 | 1.25 | 5.50000 | 1.75000 | 3.500 | IN | 90.0 | Yes | |
| 292-18-728 | 18-728 CMW | RWMA Class 3 | 1.25 | 1.5 | 6.31300 | 2.00000 | 4.000 | IN | 90.0 | Yes | |
| 292-18-729 | 18-729 CMW | RWMA Class 3 | 1.5 | 1.5 | 6.31300 | 2.00000 | 4.000 | IN | 90.0 | Yes | |
| 292-18-730 | 18-730 CMW | RWMA Class 3 | 1.5 | 1.25 | 6.31300 | 2.00000 | 4.000 | IN | 90.0 | Yes | |
| 292-18-731 | 18-731 CMW | RWMA Class 3 | 0.875 | 1 | 5.00000 | 1.50000 | 3.000 | IN | 30.0 | Yes | |
| 292-18-732 | 18-732 CMW | RWMA Class 3 | 1 | 1 | 5.00000 | 1.50000 | 3.000 | IN | 30.0 | Yes | |
| 292-18-733 | 18-733 CMW | RWMA Class 3 | 1.25 | 1.25 | 5.50000 | 1.75000 | 3.500 | IN | 30.0 | Yes | |
| 292-18-734 | 18-734 CMW | RWMA Class 3 | 1.5 | 1.5 | 6.00000 | 2.00000 | 4.000 | IN | 30.0 | Yes |
