18-723 CMW

Part #: 292-18-723

Request 3D Model

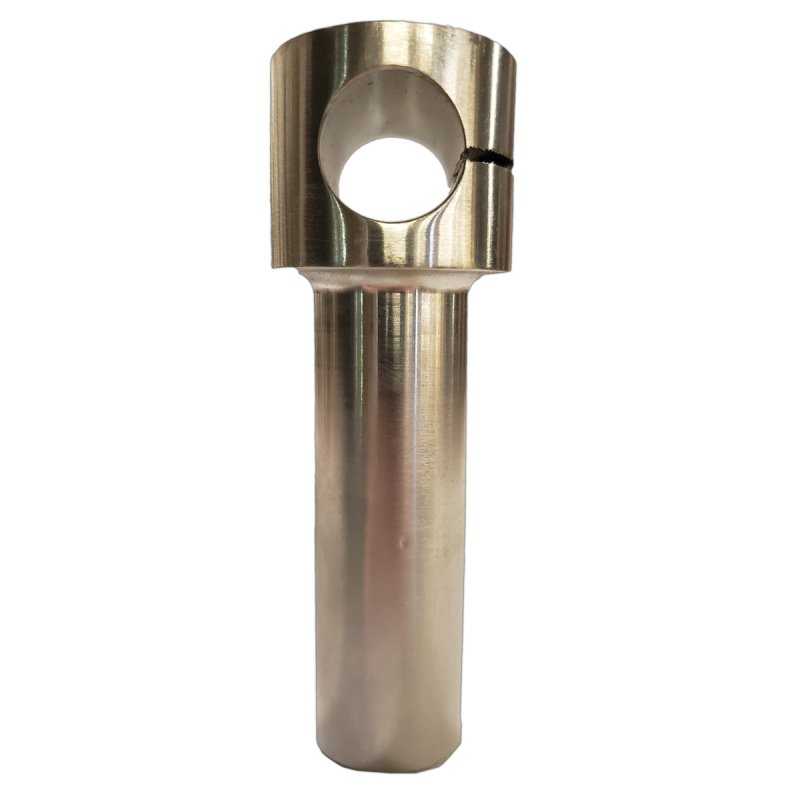

Tee Connectors are a structural component designed to hold Straight Holders or Paddle Holders. This allows users to configure the tooling of a Rocker Arm or Pedestal welder to the geometry of the weld.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The mounting shank length is 3.0 IN
The diameter of the head is 1.50 IN
The mounting shank diameter is 1.25 IN
The Tee Connector hole diameter is 0.75 IN
The part is nickel plated to protect against corrosion.

Specifications

RWMA Material Type	RWMA Class 2
Shank Diameter	1.25
Hole Diameter	0.75
Overall Length	4.25000
Diameter of Clamp Body (Round)	1.50000
Shank Length	3.000
Unit of Measure	IN
Engagement Angle	90.0
Nickel Plated	Yes
