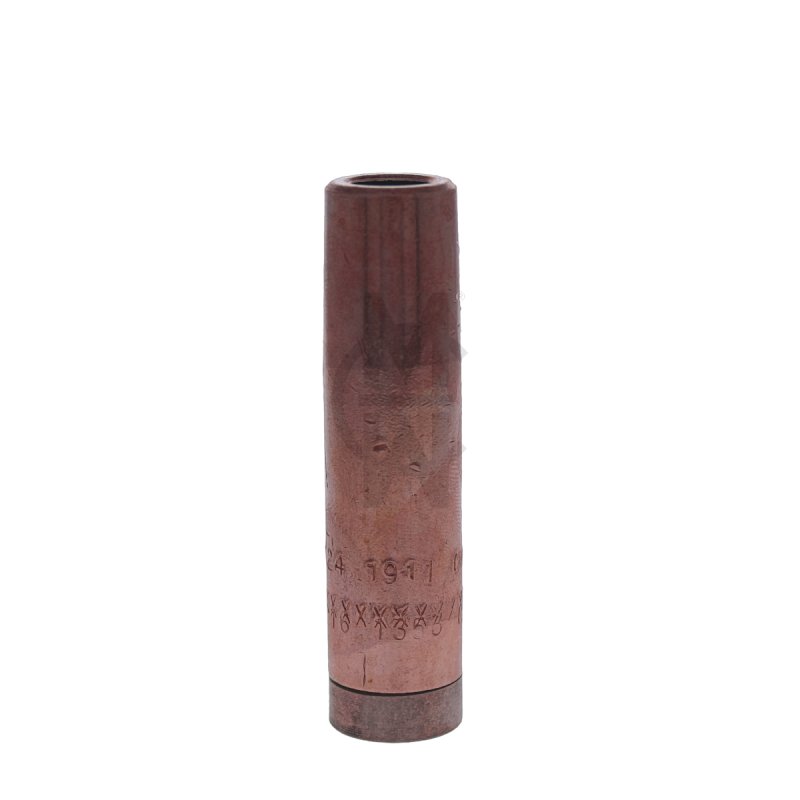

• 16-3724-1911 CMW
  • Sketch for 16-3724-1911 CMW

16-3724-1911 CMW

Part #: 275-16-3724-1911

Request 3D Model

Request 3D Model


Stud Electrodes are designed for projection welding screws, bolts or pins whether they pass through the sheet or are directly attached to the sheet metal. The stud hole is lined with an insulated bushing with high wear resistance.

A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.

  • The overall length is 2.500 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The weld face is 0.625 IN
  • The part has an insulated bushing for welding a #10 stud
  • The depth of the insulated hole for the stud is 0.750 IN
  • The ID of the insulated hole for the stud is 0.191 IN

Specifications

Face Refractory Material RWMA Class 11 - 10W
RWMA Material Type RWMA Class 2 - C18200
Engagement to Holder [T] 5RW
Overall Length [A] 2.50000
Weld Face Diameter [B] 0.625
Inside Diameter of Sleeve [K] 0.19100
Length of Sleeve [U] 0.750
For Stud Size #10
Refractory Material Thickness [I] 0.250
Unit of Measure IN
