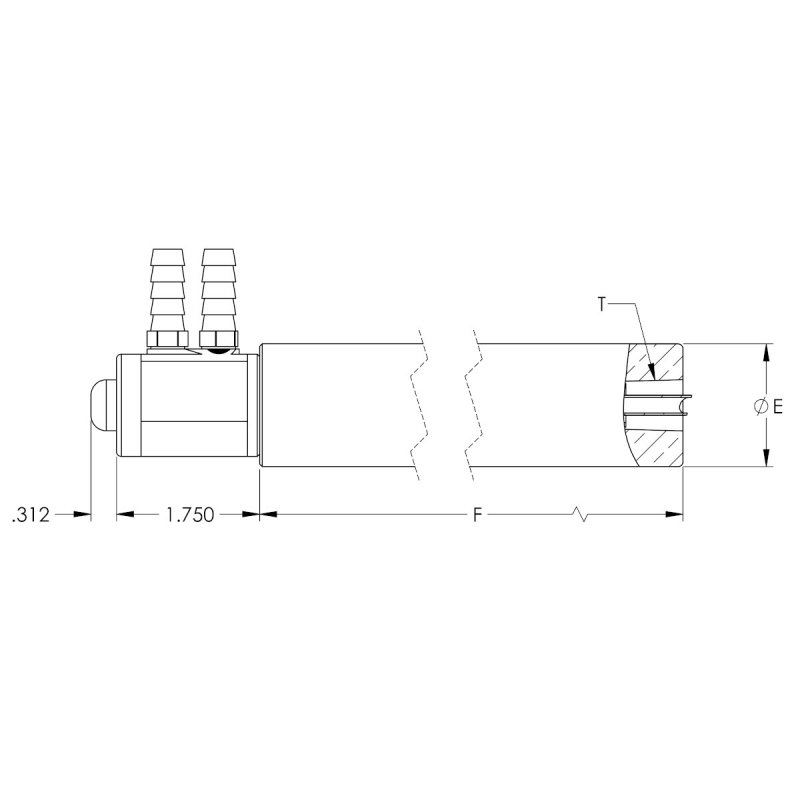

  • Sketch for 18-267 Nickel plated holder 200 series 32mm OD 300mm long 5RW

18-267 Nickel plated holder 200 series 32mm OD 300mm long 5RW

Part #: 219-18-267

Request 3D Model

Request 3D Model


200 Series Metric Straight Holders have 32mm or 25mm OD barrels for use with welders with metric tooling. They have RWMA 4RW & 5RW tapers to allow easy conversion of the metric welder to use RWMA tips. The Ejector Button allows for easy tip removal. Adjustable water tubes help maximize tip life.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 300mm
  • The outside diameter is 32mm
  • The part holds a subcomponent via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part is nickel plated to protect against corrosion.
  • Ejector Type Part

Specifications

RWMA Material Type RWMA Class 2
Electrode or Adapter Engagement [T] 5RW
Barrel Length [F] 300.00000
Barrel Dia. [E] 32.00000
Unit of Measure mm
