200 Series Metric Holder Assem

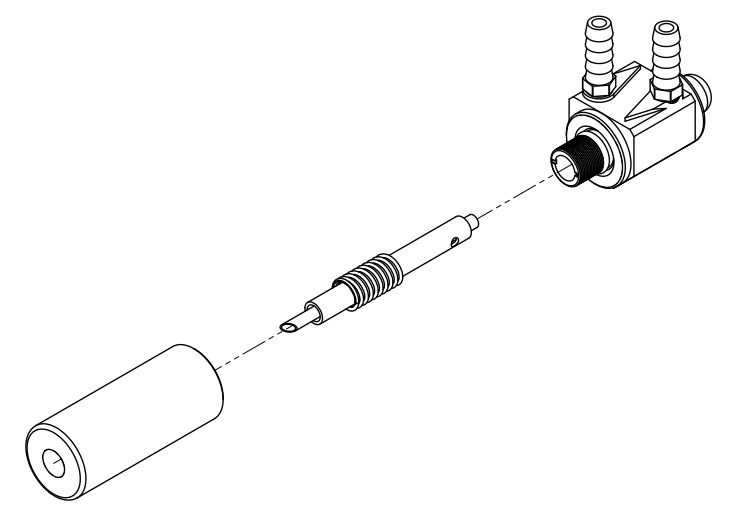

CMW 200 Series Straight Holder Exploded View

200 Series Metric Straight Holders have 32mm or 25mm OD barrels for use with welders with metric tooling. The Metric Straight Holders have RWMA 4RW & 5RW tapers to allow easy conversion of the metric welder to use RWMA tips.

Straight holders are designed for use with Rocker Arm and Pedestal Type welders with metric weld arms. These welders are typically imported from Europe or Asia.

The Ejector Button allow for easy electrode removal without damaging the taper. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life.

The holders are nickel plated for corrision resistance.

Part Description RWMA Material Type Electrode or Adapter Engagement [T] Barrel Length [F] Barrel Dia. [E] Unit of Measure
219-18-256
18-256 Nickel plated holder 200 series 25mm OD 200mm long 5RW RWMA Class 2 5RW 200.00000 25.00000 mm
219-18-264
18-264 Nickel plated holder 200 series 32mm OD 300mm long 4RW RWMA Class 2 4RW 300.00000 32.00000 mm
219-18-254
18-254 Nickel plated holder 200 series 32mm OD 200mm long 4RW RWMA Class 2 4RW 200.00000 32.00000 mm
219-18-266
18-266 Nickel plated holder 200 series 25mm OD 300mm long 5RW RWMA Class 2 5RW 300.00000 25.00000 mm
219-18-263
18-263 Nickel plated holder 200 series 25mm OD 300mm long 4RW RWMA Class 2 4RW 300.00000 25.00000 mm
219-18-257
18-257 Nickel plated holder 200 series 32mm OD 200mm long 5RW RWMA Class 2 5RW 200.00000 32.00000 mm
219-18-253
18-253 Nickel plated holder 200 series 25mm OD 200mm long 4RW RWMA Class 2 4RW 200.00000 25.00000 mm
219-18-267
18-267 Nickel plated holder 200 series 32mm OD 300mm long 5RW RWMA Class 2 5RW 300.00000 32.00000 mm
