100 Series Head Assembly

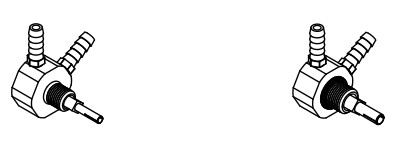

CMW Water Connector Heads for 100 Series Holders

The 100 Series Head Assembly is designed for use with the 100 Series Straight Holders. The Head Assembly contains the water in and out connections and interal water tubes to deliver cooling water to the tip.

Part Description Material Mounts to Holder Via [S] For use Barrel Electrode End Holder Series Type Overall Length [A] Width between Flats [N] Unit of Measure Nickel Plating O-ring Included Angle Between Hose Barbs
294-18-10091-12
18-10091-12 CMW Brass 4RW 100 Series Holder 11.65000 1.75000 IN Yes Yes 60
294-18-10091-3
18-10091-3 CMW Brass 5/8 - 18 4RW 100 Series Holder 2.65000 1.75000 IN Yes Yes 60
294-18-10091-8
18-10091-8 CMW Brass 5/8 - 18 4RW 100 Series Holder 7.65000 1.75000 IN Yes Yes 60
294-18-10092-12
18-10092-12 CMW Brass 3/4 - 16 5 & 7 RW 100 Series Holder 11.65000 1.75000 IN Yes Yes 60
294-18-10092-3
18-10092-3 CMW Brass 3/4 - 16 5 & 7 RW 100 Series Holder 2.65000 1.75000 IN Yes Yes 60
294-18-10092-8
18-10092-8 CMW Brass 3/4 - 16 5 & 7 RW 100 Series Holder 7.65000 1.75000 IN Yes Yes 60
295-18-10041
18-10041 CMW Brass 5/8 - 18 100 Series Holder 1.47000 1.50000 IN Yes No 60
295-18-10042
18-10042 CMW Brass 3/4 - 16 100 Series Holder 1.47000 1.50000 IN Yes No 60
18-10091-12 CMW 18-10091-3 CMW 18-10091-8 CMW 18-10092-12 CMW 18-10092-3 CMW 18-10092-8 CMW 18-10041 CMW 18-10042 CMW
