500 Series Offset Holders

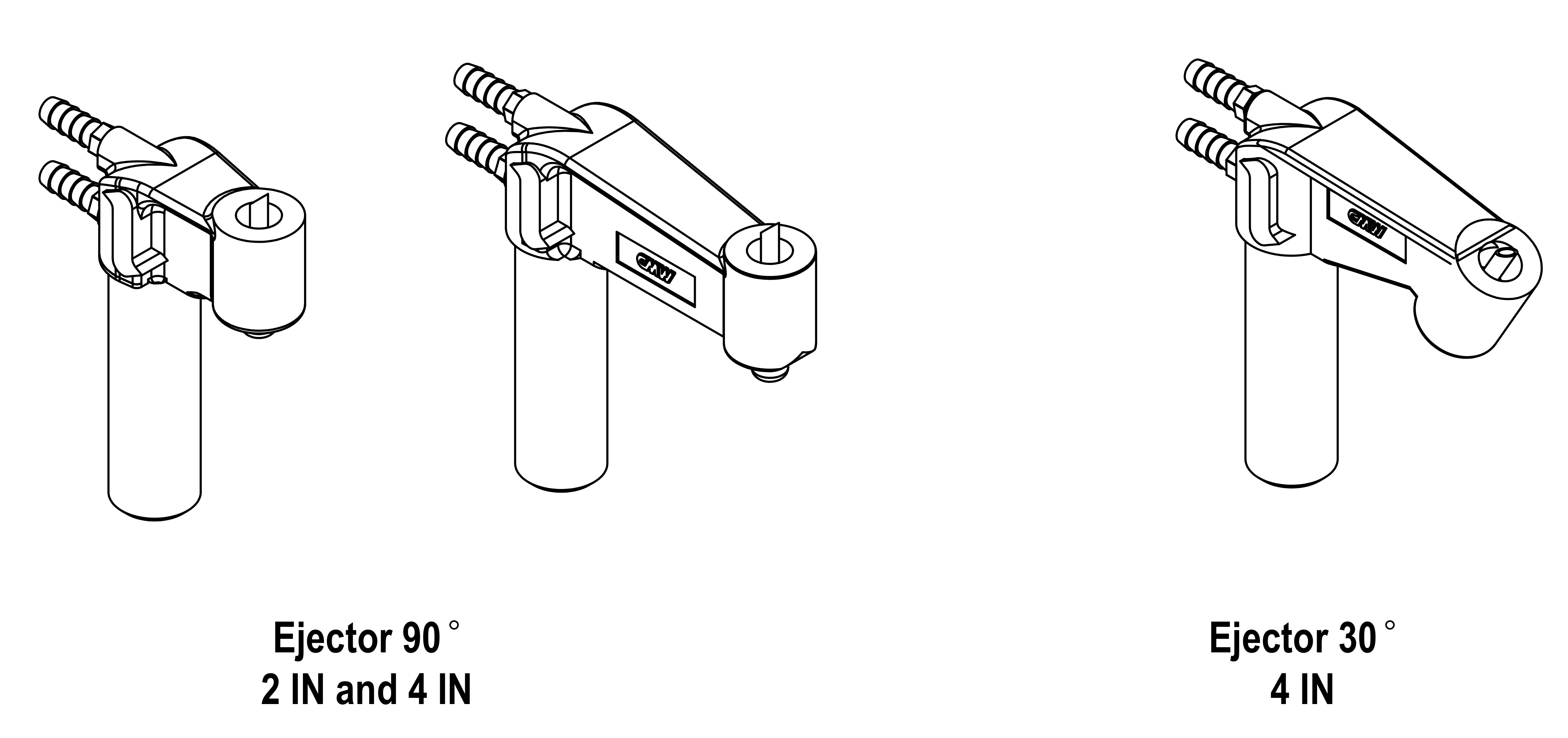

500 Series Offset Holders are premium offset holders available in a variety of configurations to allow for endless tooling configurations. The part has an ejector button for easy tip removal. These holders are commonly used with Rocker Arm and Pedestal Type welders.
- available with offsets of 2 inches or 4 inches
- available with a 90 degree or 30 degree engagement angles
- available in three different shank diameters to accomodate different weld forces
- available with an electrode adapter
| Part | Description | RWMA Material | Shank Diameter [J] | RWMA Taper [T] | Offset [H] | Shank Length [G] | Unit of Measure | Engagement Angle [D] | Ejector Type | Adapter Included | Nickel Plated |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 235-18-5245 | 18-5245 CMW | RWMA Class 3 | 1.5 | 5RW | 4.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-566 | 18-566 CMW | RWMA Class 3 | 1.5 | 7RW | 4.0000 | 4.000 | IN | 30.0 | Yes | No | Yes |
| 235-18-565 | 18-565 CMW | RWMA Class 3 | 1.25 | 7RW | 4.0000 | 4.000 | IN | 30.0 | Yes | No | Yes |
| 235-18-5646 | 18-5646 CMW | RWMA Class 3 | 1.5 | 6RW | 4.0000 | 4.000 | IN | 30.0 | Yes | Yes | Yes |
| 235-18-5645 | 18-5645 CMW | RWMA Class 3 | 1.5 | 5RW | 4.0000 | 4.000 | IN | 30.0 | Yes | Yes | Yes |
| 235-18-564 | 18-564 CMW | RWMA Class 3 | 1.5 | 5RW | 4.0000 | 4.000 | IN | 30.0 | Yes | No | Yes |
| 235-18-5636 | 18-5636 CMW | RWMA Class 3 | 1.25 | 6RW | 4.0000 | 4.000 | IN | 30.0 | Yes | Yes | Yes |
| 235-18-5635 | 18-5635 CMW | RWMA Class 3 | 1.25 | 5RW | 4.0000 | 4.000 | IN | 30.0 | Yes | Yes | Yes |
| 235-18-563 | 18-563 CMW | RWMA Class 3 | 1.25 | 5RW | 4.0000 | 4.000 | IN | 30.0 | Yes | No | Yes |
| 235-18-562 | 18-562 CMW | RWMA Class 3 | 1 | 5RW | 4.0000 | 4.000 | IN | 30.0 | Yes | No | Yes |
| 235-18-526 | 18-526 CMW | RWMA Class 3 | 1.5 | 7RW | 4.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-525 | 18-525 CMW | RWMA Class 3 | 1.25 | 7RW | 4.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-5246 | 18-5246 CMW | RWMA Class 3 | 1.5 | 6RW | 4.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-502 | 18-502 CMW | RWMA Class 3 | 1 | 5RW | 2.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-524 | 18-524 CMW | RWMA Class 3 | 1.5 | 5RW | 4.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-5236 | 18-5236 CMW | RWMA Class 3 | 1.25 | 6RW | 4.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-5235 | 18-5235 CMW | RWMA Class 3 | 1.25 | 5RW | 4.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-523 | 18-523 CMW | RWMA Class 3 | 1.25 | 5RW | 4.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-522 | 18-522 CMW | RWMA Class 3 | 1 | 5RW | 4.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-5046 | 18-5046 CMW | RWMA Class 3 | 1.5 | 6RW | 2.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-5045 | 18-5045 CMW | RWMA Class 3 | 1.5 | 5RW | 2.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-504 | 18-504 CMW | RWMA Class 3 | 1.5 | 5RW | 2.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
| 235-18-5036 | 18-5036 CMW | RWMA Class 3 | 1.25 | 6RW | 2.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-5035 | 18-5035 CMW | RWMA Class 3 | 1.25 | 5RW | 2.0000 | 4.000 | IN | 90.0 | Yes | Yes | Yes |
| 235-18-503 | 18-503 CMW | RWMA Class 3 | 1.25 | 5RW | 2.0000 | 4.000 | IN | 90.0 | Yes | No | Yes |
