18-404 CMW

Part #: 235-18-404

Request 3D Model

The 400 Series Offset Holders are available with different offsets and engagement angles to fit any job. The parts are nickel plated to resist wear. These holders are commonly used with Rocker Arm and Pedestal Type welders.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The mounting shank length is 3.000 IN
The mounting shank diameter is 1.25 IN
The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The offset is 2 IN
The engagement angle is 90 Degrees
The part is nickel plated to protect against corrosion.

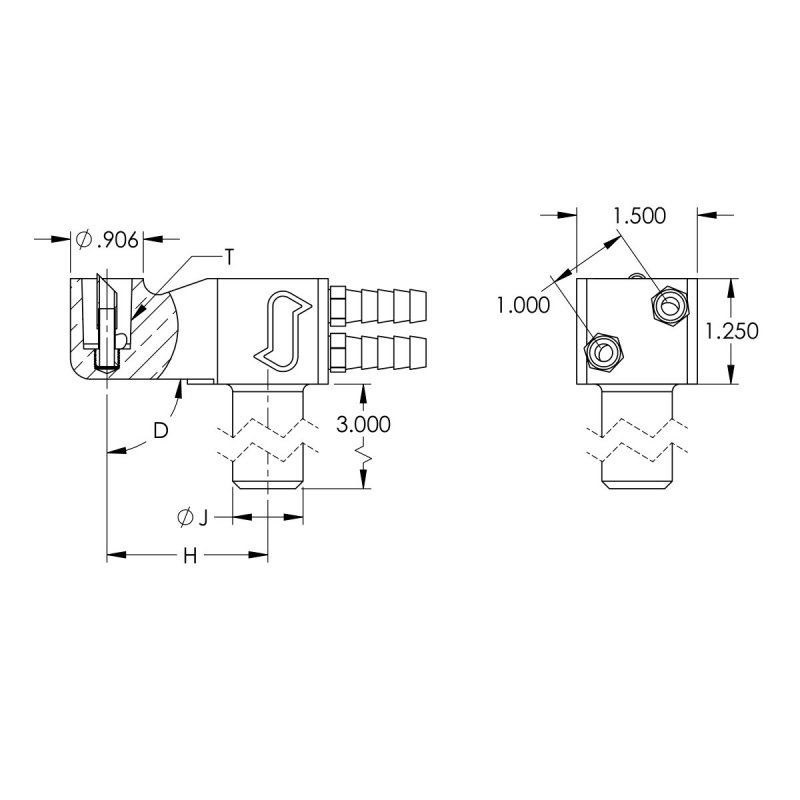

Specifications

RWMA Material	RWMA Class 2
Shank Diameter [J]	1.25
RWMA Taper [T]	4RW
Offset [H]	2.0000
Shank Length	3.000
Unit of Measure	IN
Engagement Angle [D]	90.0
Nickel Plated	Yes
