400 Series Offset Holders
400 Series Offset Holders are low cost offset holders available in a variety of configurations to allow for endless tooling configurations. These holders are commonly used with Rocker Arm and Pedestal Type welders.
- available with offsets of 2 or 4 inches

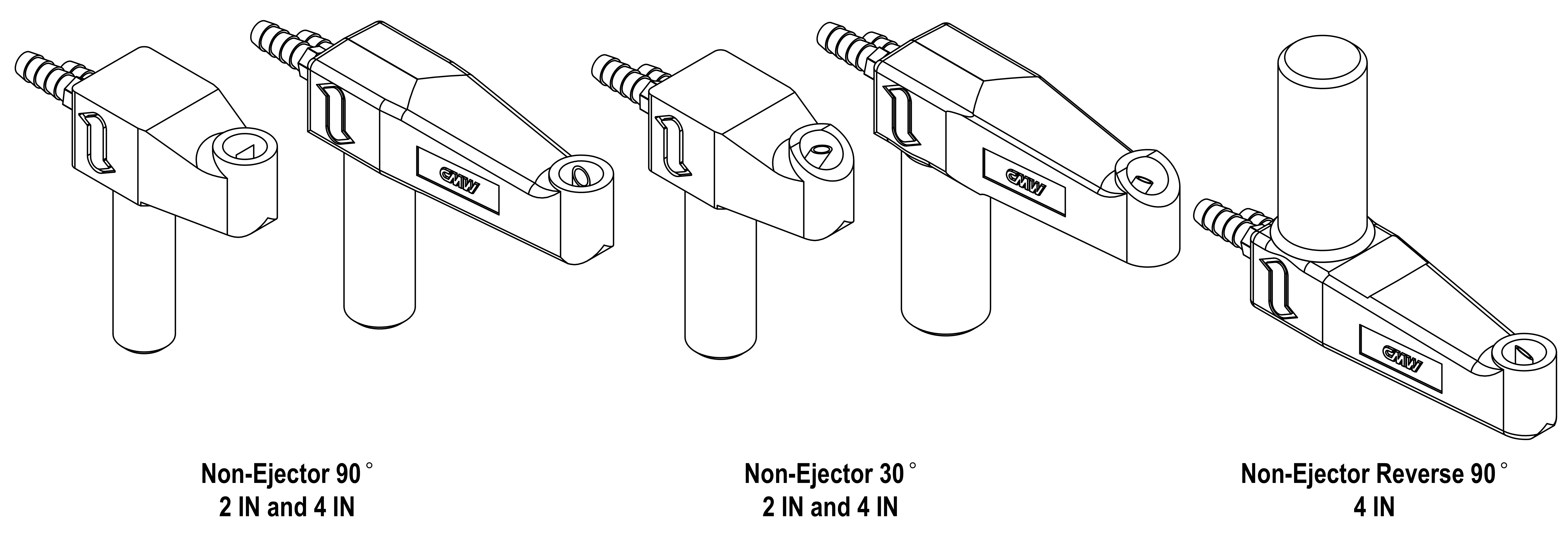

- available with a 90 degree, 30 degree, or reverse 90 degree engagement
- available in three different shank diameters
| Part | Description | RWMA Material | Shank Diameter [J] | RWMA Taper [T] | Offset [H] | Shank Length | Unit of Measure | Engagement Angle [D] | Nickel Plated |
|---|---|---|---|---|---|---|---|---|---|
| 235-18-433 | 18-433 CMW | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.000 | IN | -90.0 | Yes |
| 235-18-469 | 18-469 CMW | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-468 | 18-468 CMW | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-464 | 18-464 CMW | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-463 | 18-463 CMW | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-449 | 18-449 CMW | RWMA Class 2 | 1.25 | 5RW | 2.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-448 | 18-448 CMW | RWMA Class 2 | 1 | 5RW | 2.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-444 | 18-444 CMW | RWMA Class 2 | 1.25 | 4RW | 2.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-443 | 18-443 CMW | RWMA Class 2 | 1 | 4RW | 2.0000 | 3.000 | IN | 30.0 | Yes |
| 235-18-439 | 18-439 CMW | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.000 | IN | -90.0 | Yes |
| 235-18-402 | 18-402 CMW | RWMA Class 2 | 0.875 | 4RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-429 | 18-429 CMW | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-428 | 18-428 CMW | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-424 | 18-424 CMW | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-423 | 18-423 CMW | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-409 | 18-409 CMW | RWMA Class 2 | 1.25 | 5RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-408 | 18-408 CMW | RWMA Class 2 | 1 | 5RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-407 | 18-407 CMW | RWMA Class 2 | 0.875 | 5RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-404 | 18-404 CMW | RWMA Class 2 | 1.25 | 4RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
| 235-18-403 | 18-403 CMW | RWMA Class 2 | 1 | 4RW | 2.0000 | 3.000 | IN | 90.0 | Yes |
