18-1103 CMW

Part #: 255-18-1103

Request 3D Model

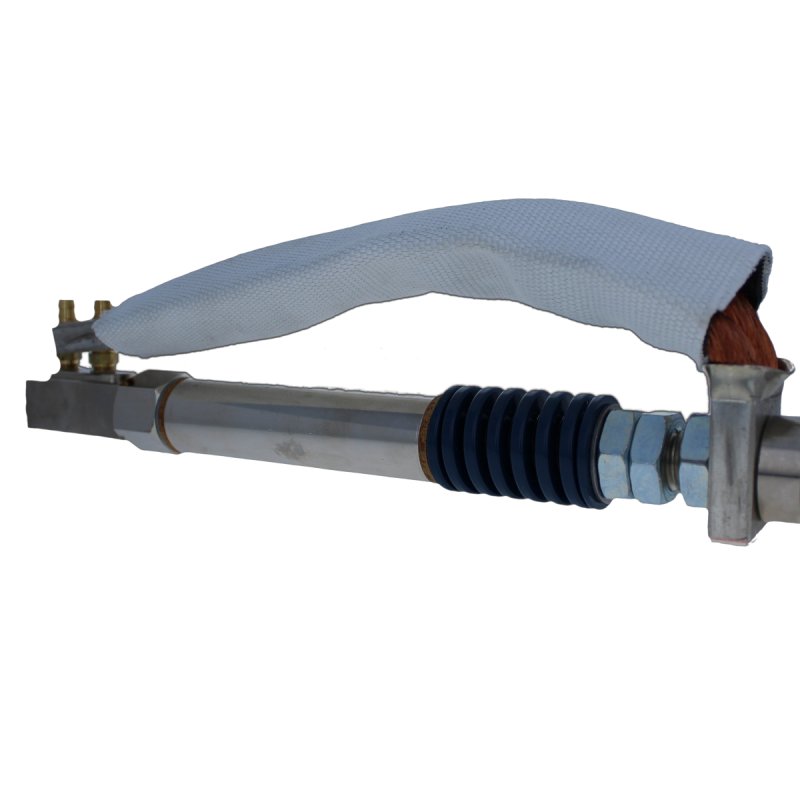

The Adjust-A-Pressure Holder is a low intertia, fast follow up for projection welding. When the projections collapse during the weld, the spring loaded holder maintains pressure with the nut or stud.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

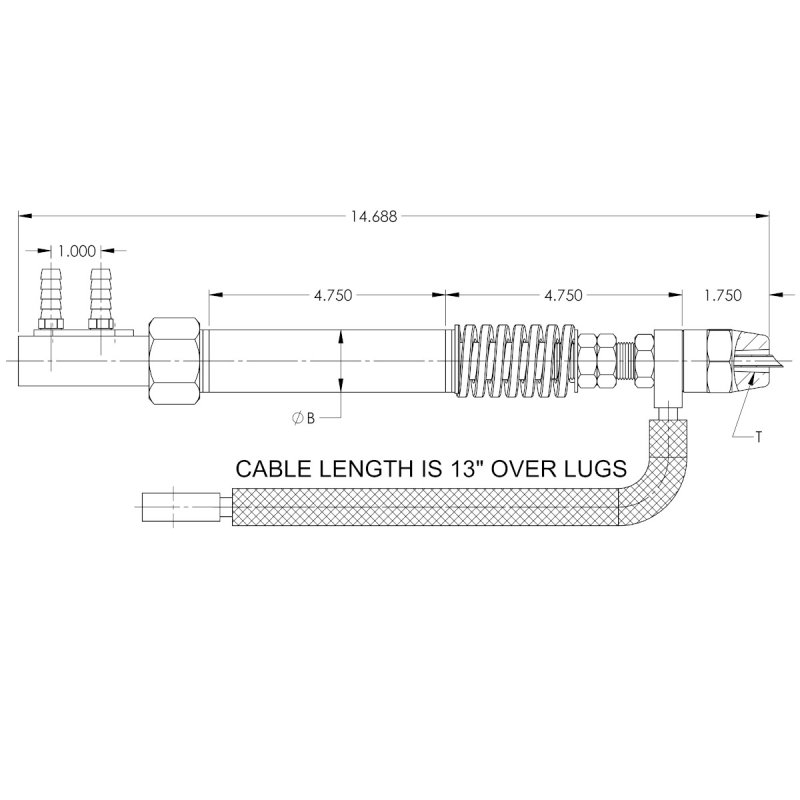

The overall length is 14.688 IN
The outside diameter is 1.25 IN
The part holds a 4RW electrode
The maximum follow up force 500 lbs
The part includes a 13 IN 600 MCM weld cable

Specifications

RWMA Material Type	RWMA Class 2
Electrode Engagement [T]	4RW
Max Follow Up Force	500 LBS
Overall Length	14.68750
Outer Diameter [B]	1.50000
Mounting Shank Length	4.750
Unit of Measure	IN
Nickel Plated	Yes
