3111 CMW

Part #: 234-3111

Request 3D Model

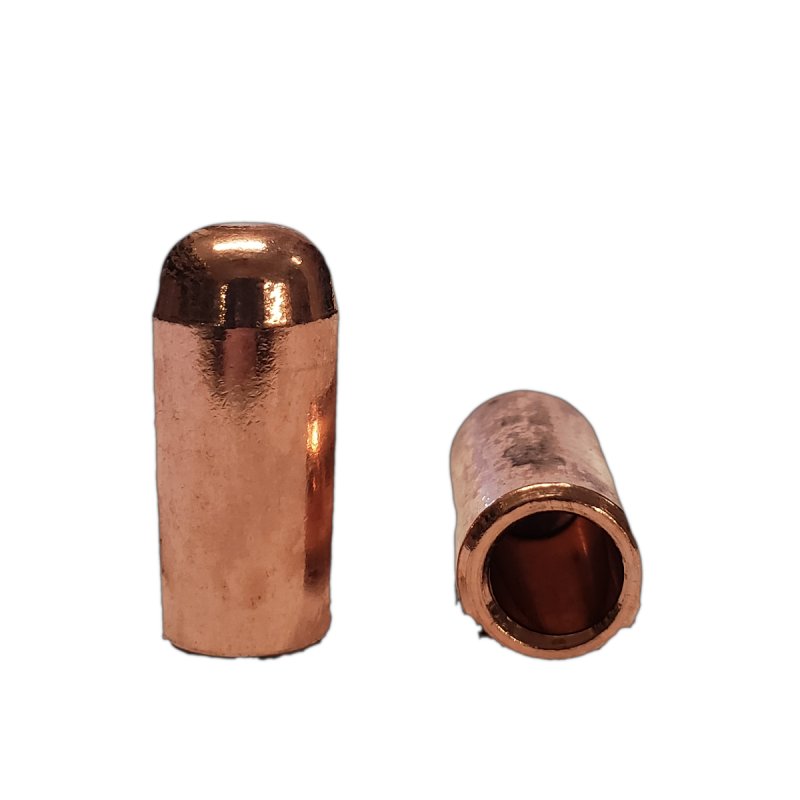

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.00 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
The weld face is 0.188 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW
Nose Type	B
Overall Length [A]	1.00000
Outer Diameter [B]	0.48200
Welding Face Dia. [C]	0.188
Water Hole Dia. [E]	0.28100
Water Hole Depth [F]	0.625
Nose Length [G]	0.1940
Unit of Measure	IN
