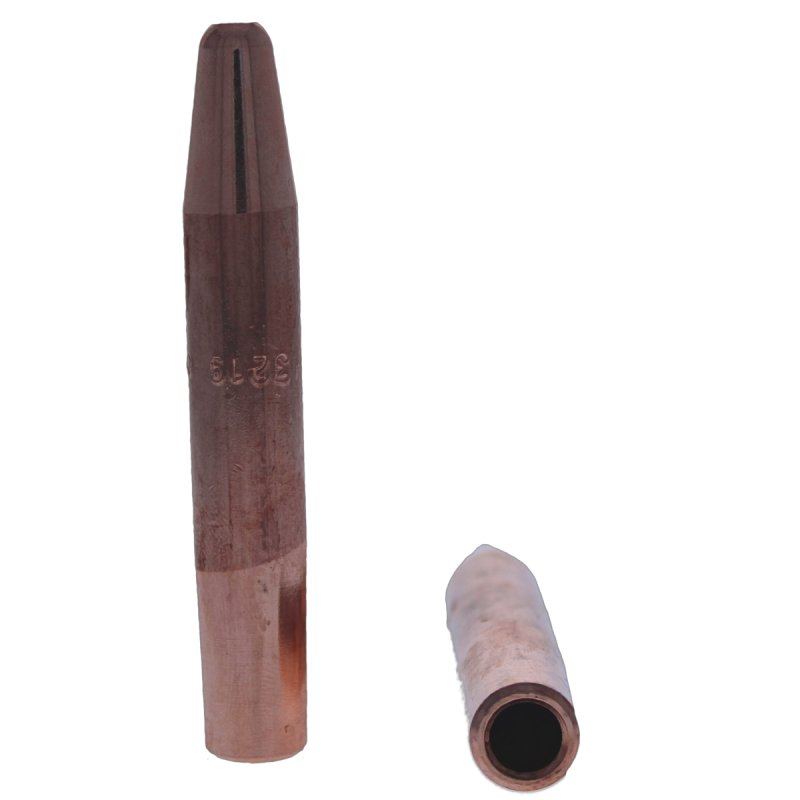

3219 CMW

Part #: 232-3219

Request 3D Model

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.00 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.188 IN

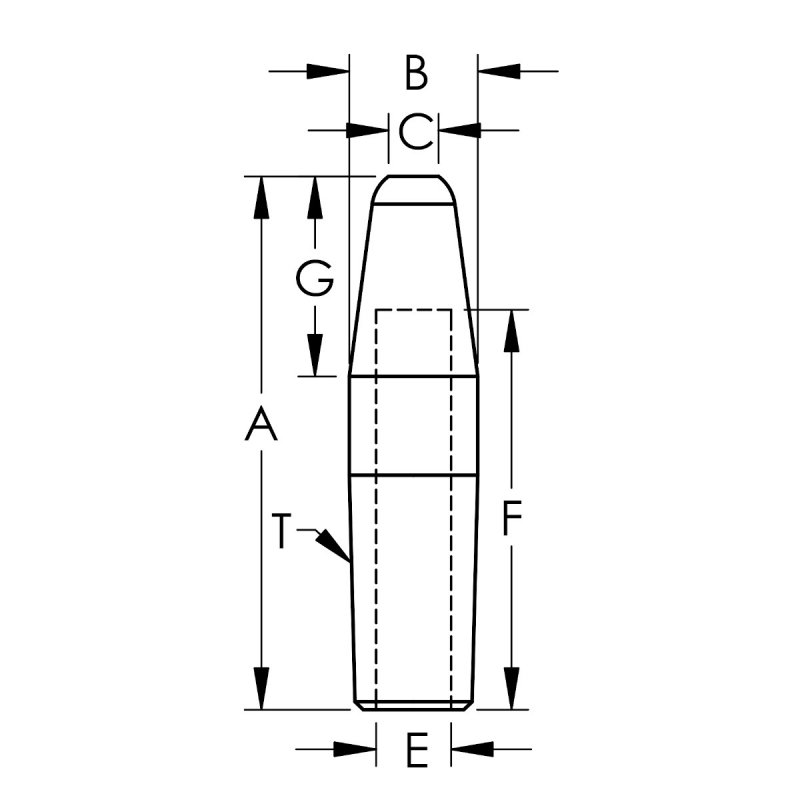

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW
Nose Type	A
Overall Length [A]	3.00000
Outer Diameter [B]	0.48200
Welding Face Dia. [C]	0.188
Water Hole Dia. [E]	0.28100
Water Hole Depth [F]	2.500
Nose Length [G]	0.7500
Unit of Measure	IN
