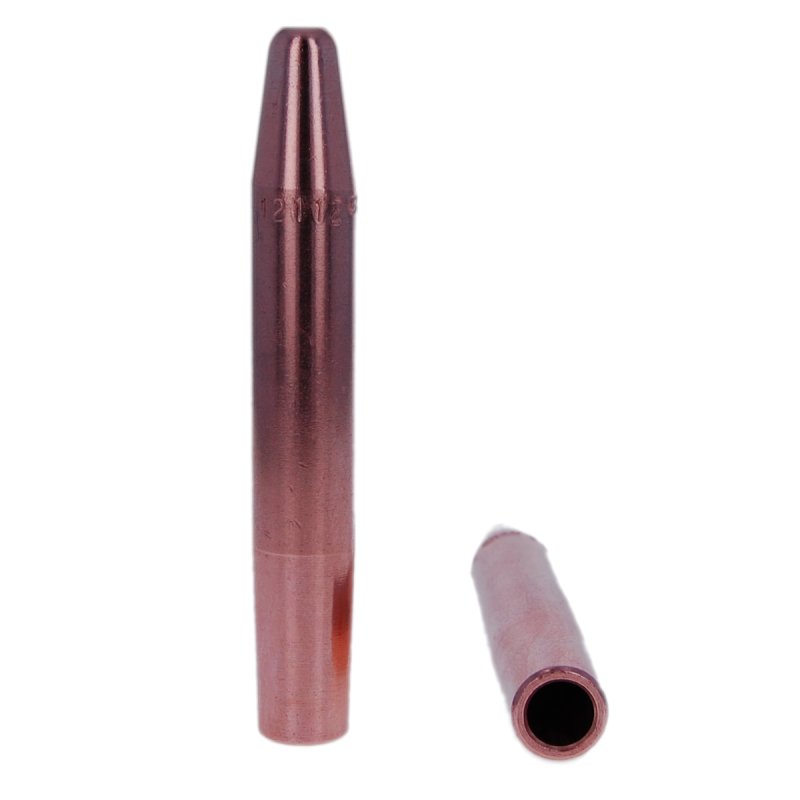

12112 CMW
Part #: 231-12112
Request 3D Model
Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 3.25 IN
- The outside diameter is 0.482 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
- The weld face is 0.188 IN
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| RWMA Taper [T] | 4RW |
| Nose Type | A |
| Overall Length [A] | 3.25000 |
| Outer Diameter [B] | 0.48200 |
| Welding Face Dia. [C] | 0.188 |
| Water Hole Dia. [E] | 0.28100 |
| Water Hole Depth [F] | 2.750 |
| Nose Length [G] | 0.7500 |
| Unit of Measure | IN |
