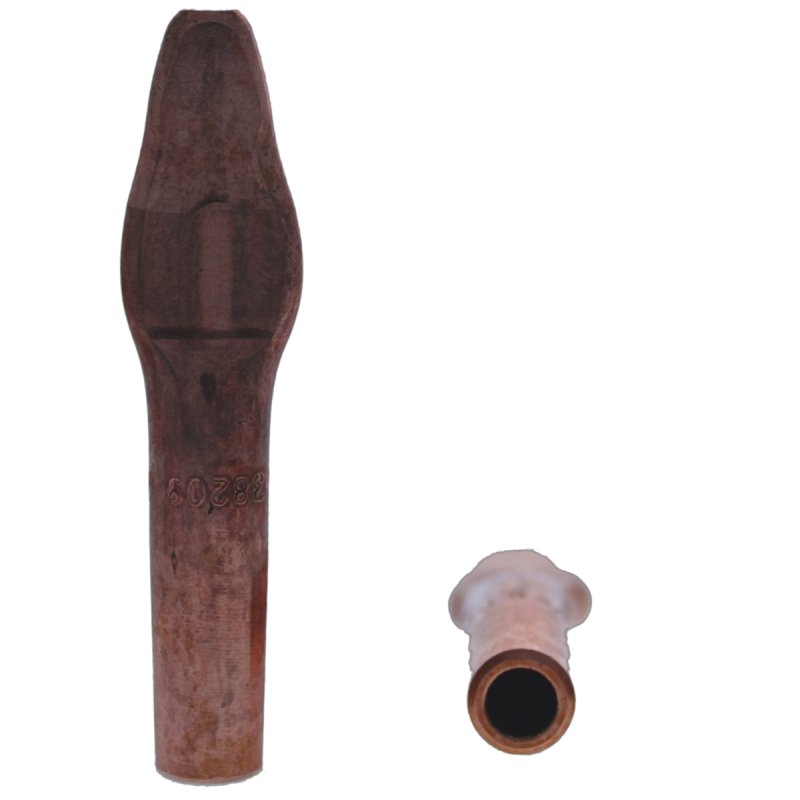

• 16-38209 CMW

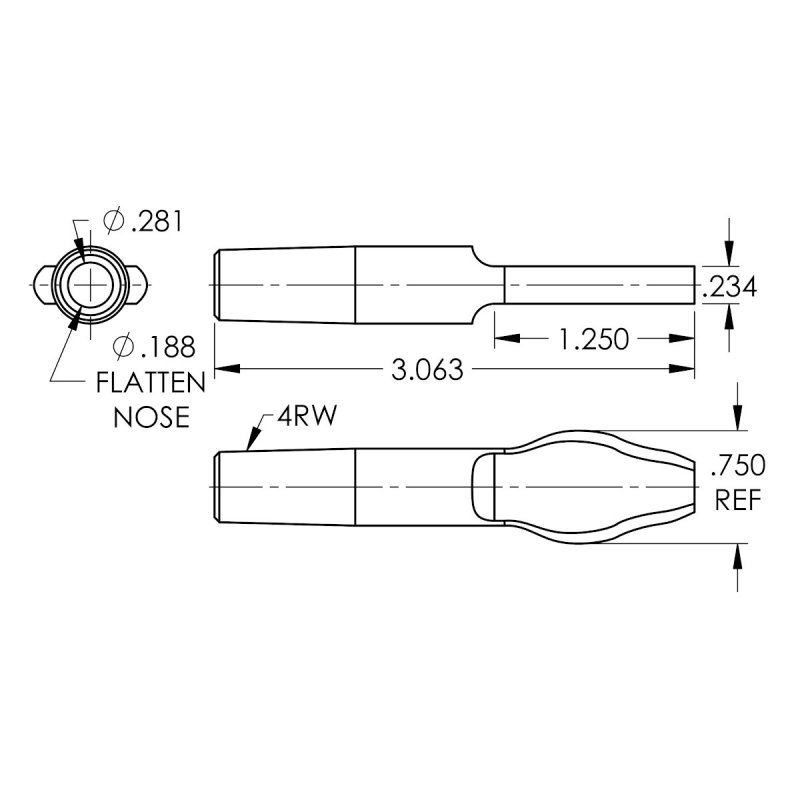

  • Sketch for 16-38209 CMW

16-38209 CMW

Part #: 270-16-38209

Request 3D Model

Request 3D Model


Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.062 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.234 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type Spade
Overall Length 3.06200
Outer Diameter 0.48200
Welding Face Dia. 0.234375
Water Hole Diameter 0.28100
Water Hole Depth 2.562
Unit of Measure IN
