Spade Electrodes

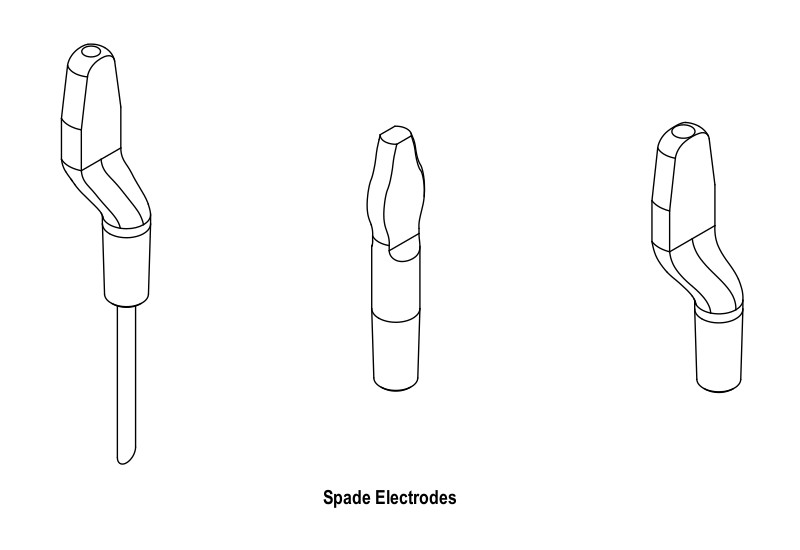

Spade Electrodes are designed for welding in tight spaces. The tips have a flattend tip to weld into on a flange or in a channel.
The tips are available in a straight or double bend configuration.
| Part | Description | RWMA Material Type | RWMA Taper | Nose Type | Overall Length | Outer Diameter | Welding Face Dia. | Offset | Water Hole Diameter | Water Hole Depth | Taper to Bend Length | Bend to Nose Length | Unit of Measure | Tube |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270-16-38201 | 16-38201 CMW | RWMA Class 2 - C18200 | 4RW | Spade | 2.75000 | 0.48200 | 0.28125 | 0.5000 | 0.8750 | 1.2500 | IN | Yes | ||
| 270-16-38202 | 16-38202 CMW | RWMA Class 2 - C18200 | 4RW | Spade | 2.18750 | 0.48200 | 0.25 | 0.5000 | 0.9400 | 1.2500 | IN | No | ||
| 270-16-38209 | 16-38209 CMW | RWMA Class 2 - C18200 | 4RW | Spade | 3.06200 | 0.48200 | 0.234375 | 0.28100 | 2.562 | IN | No | |||
| 270-16-382101 | 16-382101 CMW | RWMA Class 2 - C18200 | 5RW | Spade | 3.06250 | 0.62500 | 0.375 | 0.5000 | 1.0000 | 1.3125 | IN | Yes | ||
| 270-16-382102 | 16-382102 CMW | RWMA Class 2 - C18200 | 5RW | Spade | 3.06250 | 0.62500 | 0.3125 | 0.5000 | 1.0000 | 1.2500 | IN | No | ||
| 270-16-382109 | 16-382109 CMW | RWMA Class 2 - C18200 | 5RW | Spade | 3.31300 | 0.62500 | 0.3125 | 0.37500 | 2.813 | IN | No |
