16-26045 CMW

Part #: 267-16-26045

Request 3D Model

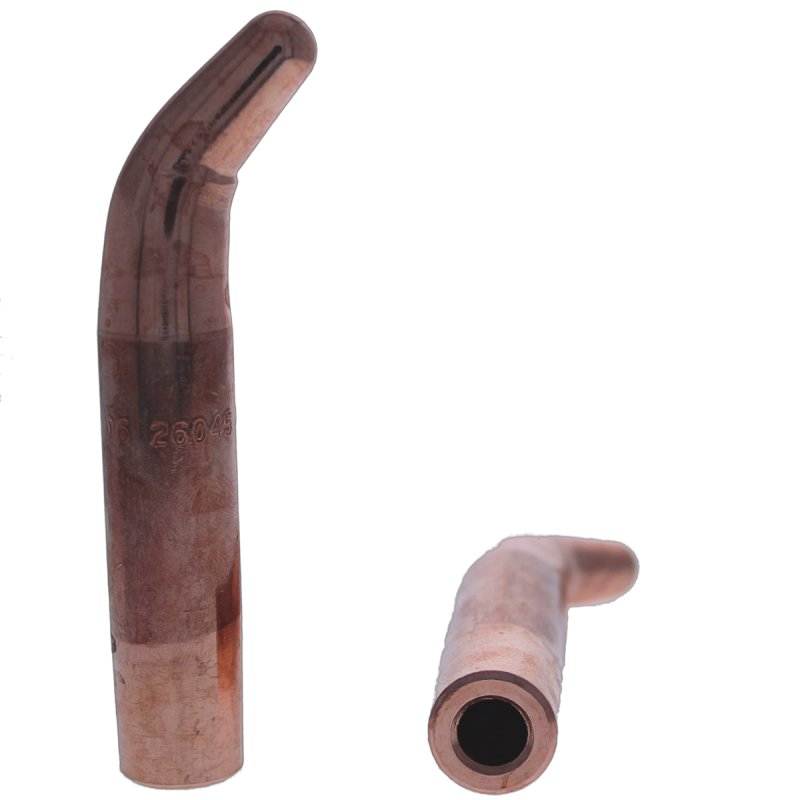

Single Bend Ball Nose Tips are an economic solution to weld in a tight are area or hard to reach spot such as a flange or corner. The spherical, ball nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.500 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The Ball or Spherical nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.
The weld face is 3/16 Radius IN
The offset is 0.672 IN
The engagement angle is 45 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	5RW
Nose Type	Ball
Overall Length [A]	3.50000
Outer Diameter [B]	0.62500
Welding Face Dia. [C]	3/16 Radius
Offset [H]	0.6720
Water Hole Dia. [E]	0.31300
Unit of Measure	IN
Bend Angle (Deg) [D]	45.0
