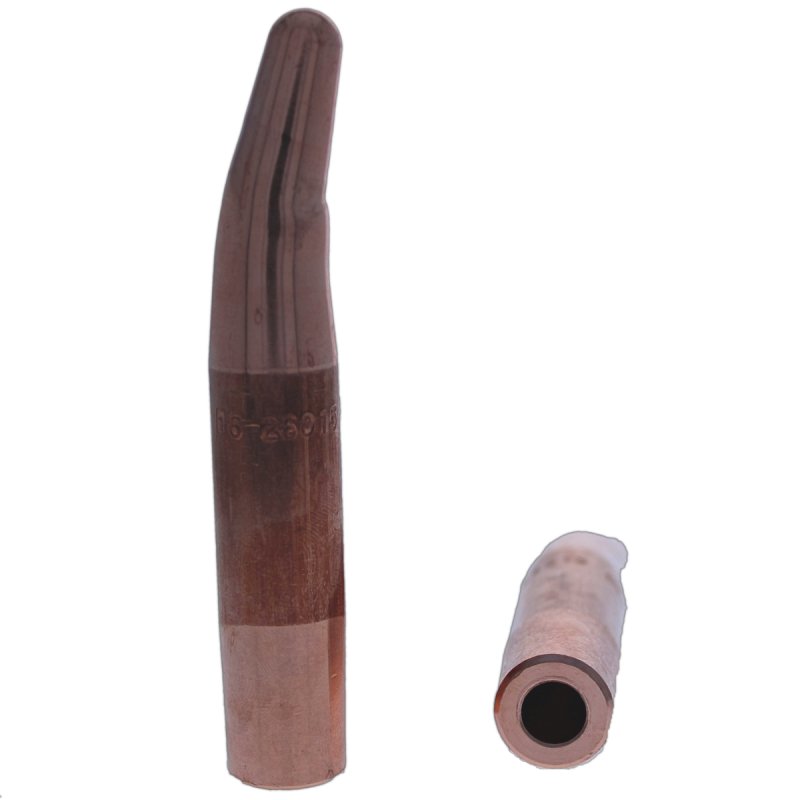

• 16-26015 CMW

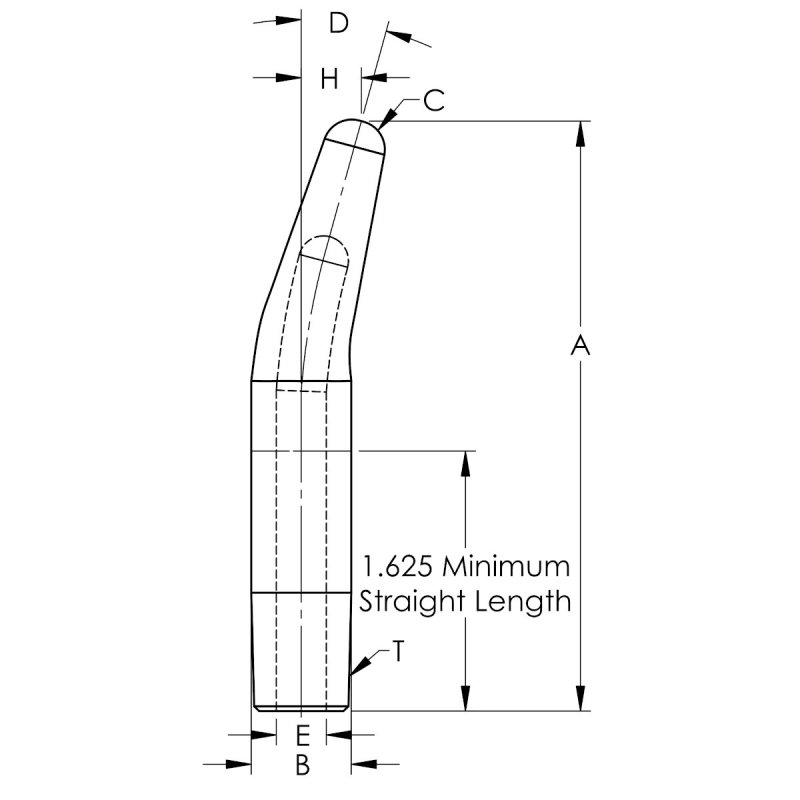

  • Sketch for 16-26015 CMW

16-26015 CMW

Part #: 267-16-26015

Request 3D Model

Request 3D Model


Single Bend Ball Nose Tips are an economic solution to weld in a tight are area or hard to reach spot such as a flange or corner. The spherical, ball nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.688 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The Ball or Spherical nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.
  • The weld face is 3/16 Radius IN
  • The offset is 0.375 IN
  • The engagement angle is 15 Degrees

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 5RW
Nose Type Ball
Overall Length [A] 3.68800
Outer Diameter [B] 0.62500
Welding Face Dia. [C] 3/16 Radius
Offset [H] 0.3750
Water Hole Dia. [E] 0.31300
Unit of Measure IN
Bend Angle (Deg) [D] 15.0
