16-382120 CMW

Part #: 270-16-382120

Request 3D Model

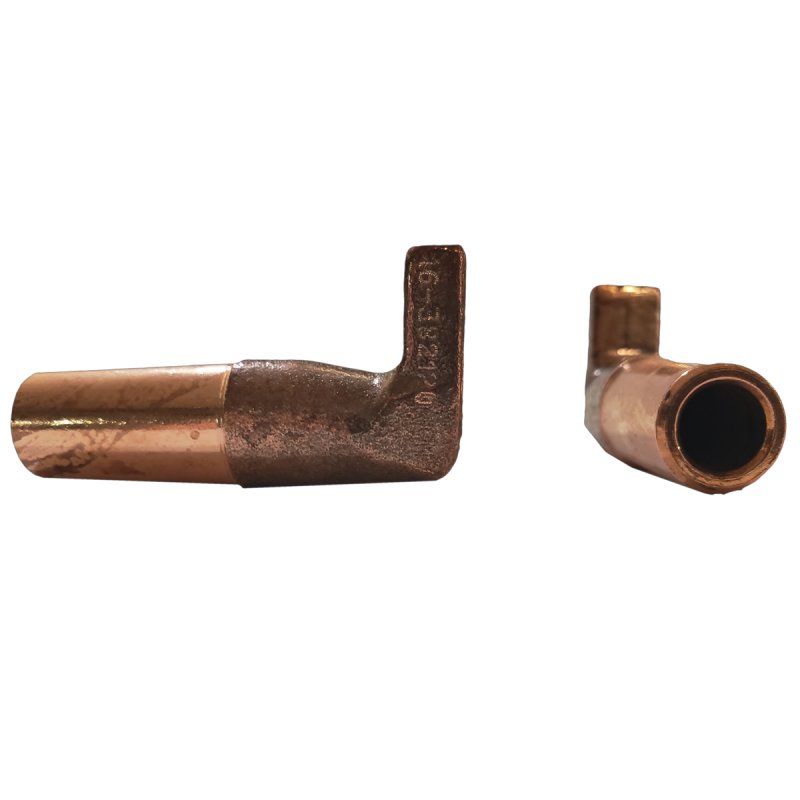

Gun Electrodes are designed to fit into tight spaces or to weld a flange. They have a rectangular weld face.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

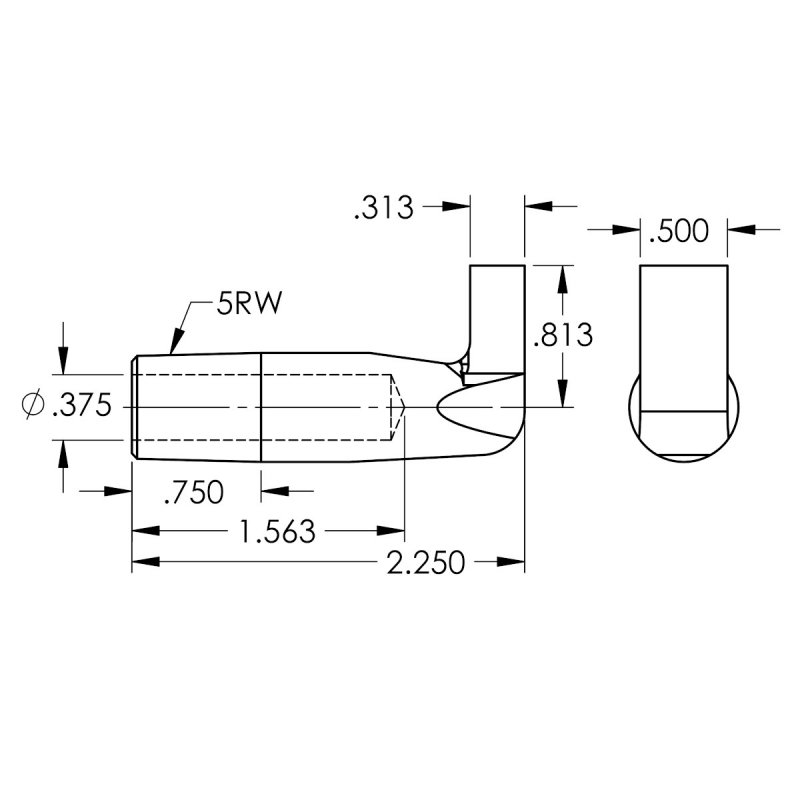

The overall length is 2.25 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The tip has a rectangular nose.
The weld face is 0.3125 x 0.5 IN
The offset is 0.81 IN
The engagement angle is 90 Degrees
The part is made from a casting

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW
Nose Type	Rectangle
Overall Length	2.25000
Welding Face Dia.	0.3125 x 0.5
Offset	0.8125
Taper Length	1.1250
Unit of Measure	IN
Bend Angle (Deg)	90.0
Cast Part	Yes
