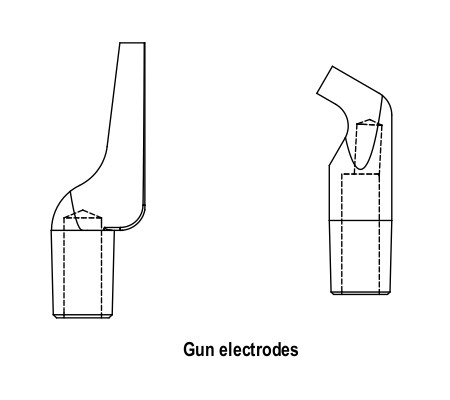

Gun Electrodes
Gun Electrodes are cast or cold formed electrodes designed to weld in tight spaces such as a channel or flange.
They are available in a single bend or double bend configuration.
Gun Electrodes are similar to Spade Electrodes, but can be used with higher weld forces.
| Part | Description | RWMA Material Type | RWMA Taper | Nose Type | Overall Length | Welding Face Dia. | Offset | Taper Length | Unit of Measure | Bend Angle (Deg) | Cast Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 270-16-3820 | 16-3820 CMW | RWMA Class 2 - C18200 | 4RW | Rectangle | 2.75000 | 0.25 x 0.375 | 0.5000 | 0.8750 | IN | Yes | |
| 270-16-3821 | 16-3821 CMW | RWMA Class 2 - C18200 | 5RW | Rectangle | 2.75000 | 0.25 x 0.375 | 0.5000 | 0.8750 | IN | Yes | |
| 270-16-382120 | 16-382120 CMW | RWMA Class 2 - C18200 | 5RW | Rectangle | 2.25000 | 0.3125 x 0.5 | 0.8125 | 1.1250 | IN | 90.0 | Yes |
