MP30212-12 CMW

Part #: 264-MP30212-12

Request 3D Model

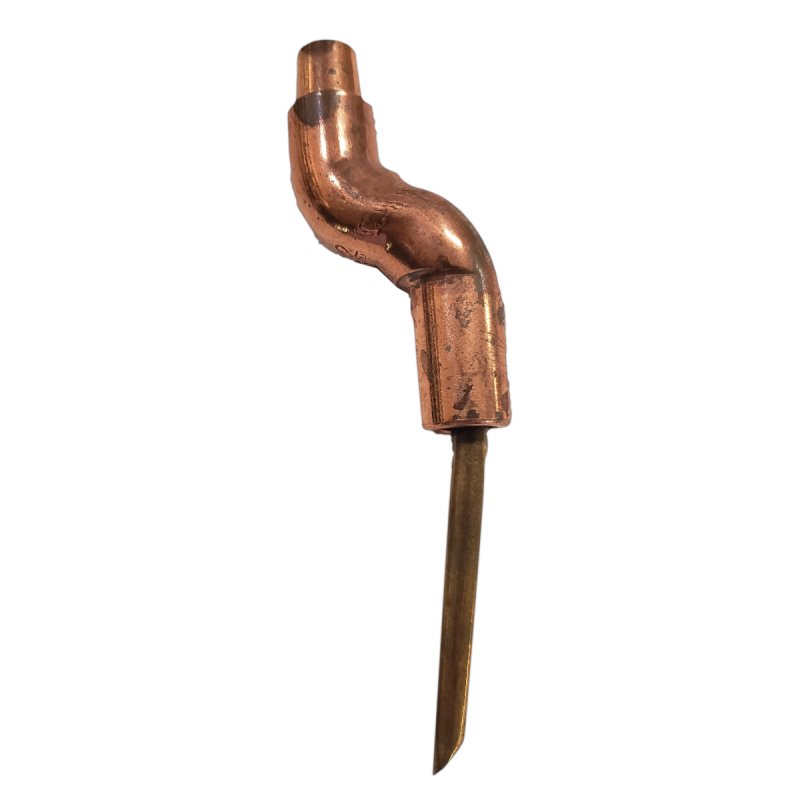

Bent Shanks for Female Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.77 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The part holds a subcomponent via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The assembled length is 3.44 IN
The offset is 0.75 IN
The part includes a water tube for cooling

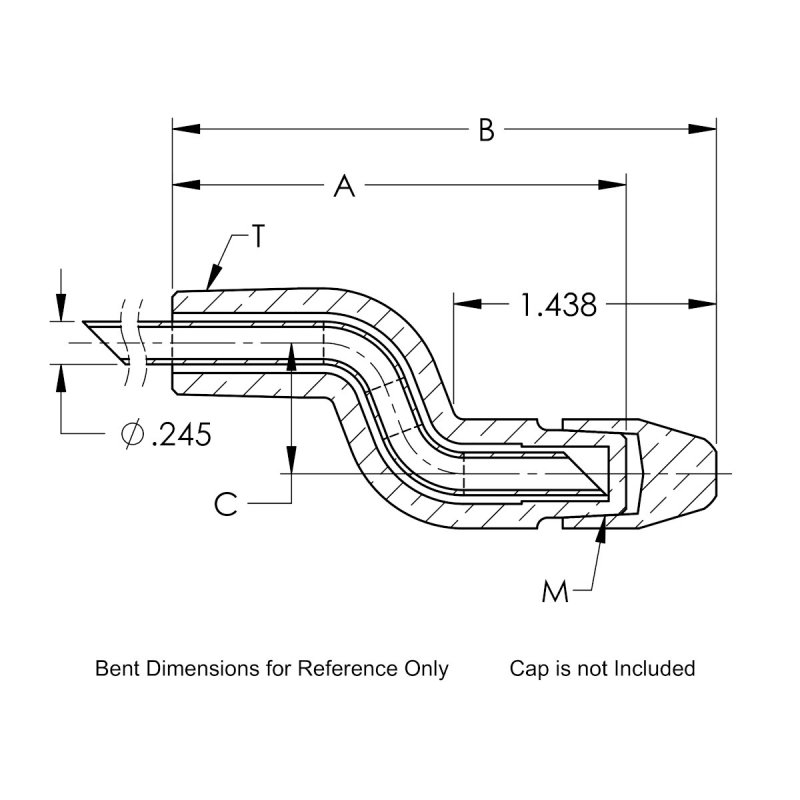

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Base Taper [T]	5RW
RWMA Cap Taper [M]	5RW Cap Taper
Overall Length [A]	2.77000
Outer Diameter	0.62500
Offset [C]	0.7500
Inner Diameter	0.37500
Assembled Length [B]	3.4400
Unit of Measure	IN
Tube	Yes
