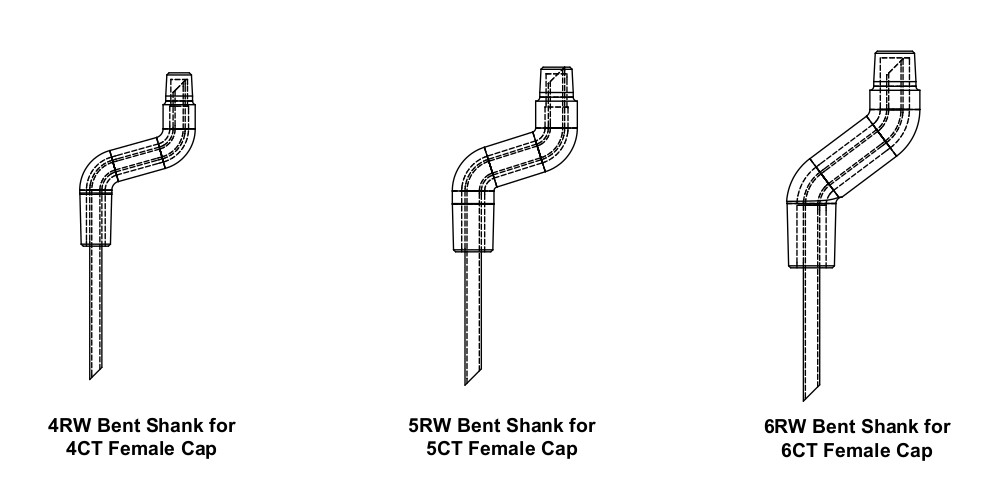

Bent Shanks for Female Caps
Bent Shanks for Female Caps are a cost effective way to utilize female caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The dobule bend profile allows the user to weld in tight spaces or around obstrucitons.
The combination of shanks and caps are an economical way to reduce the tooling cost for an application as a cap electrode is cheaper than a standard straight or double bend electrode.
It is recommended that a standard straight or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.
| Part | Description | RWMA Material Type | RWMA Base Taper [T] | RWMA Cap Taper [M] | Overall Length [A] | Outer Diameter | Offset [C] | Inner Diameter | Assembled Length [B] | Unit of Measure | Tube |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 264-MP30112-12 | MP30112-12 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.81000 | 0.48200 | 0.7500 | 0.28100 | 3.4700 | IN | Yes |
| 264-MP30112-16 | MP30112-16 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.37000 | 0.48200 | 1.0000 | 0.28100 | 3.0300 | IN | Yes |
| 264-MP30116-16 | MP30116-16 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.87000 | 0.48200 | 1.0000 | 0.28100 | 3.5300 | IN | Yes |
| 264-MP30116-20 | MP30116-20 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.60000 | 0.48200 | 1.2500 | 0.28100 | 3.2800 | IN | Yes |
| 264-MP3019-08 | MP3019-08 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.62000 | 0.48200 | 0.5000 | 0.28100 | 3.2800 | IN | Yes |
| 264-MP3019-12 | MP3019-12 CMW | RWMA Class 2 - C18200 | 4RW | 4RW Cap Taper | 2.56000 | 0.48200 | 0.7500 | 0.28100 | 3.2200 | IN | Yes |
| 264-MP30212-12 | MP30212-12 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.77000 | 0.62500 | 0.7500 | 0.37500 | 3.4400 | IN | Yes |
| 264-MP30212-16 | MP30212-16 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.33000 | 0.62500 | 1.0000 | 0.37500 | 3.0000 | IN | Yes |
| 264-MP30214-12 | MP30214-12 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 3.00000 | 0.62500 | 0.7500 | 0.37500 | 3.6600 | IN | Yes |
| 264-MP30214-16 | MP30214-16 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.81000 | 0.62500 | 1.0000 | 0.37500 | 3.4800 | IN | Yes |
| 264-MP30216-16 | MP30216-16 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.83000 | 0.62500 | 1.0000 | 0.37500 | 3.4900 | IN | Yes |
| 264-MP30216-20 | MP30216-20 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.77000 | 0.62500 | 1.2500 | 0.37500 | 3.4300 | IN | Yes |
| 264-MP3029-08 | MP3029-08 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.58000 | 0.62500 | 0.5000 | 0.37500 | 3.2000 | IN | Yes |
| 264-MP3029-12 | MP3029-12 CMW | RWMA Class 2 - C18200 | 5RW | 5RW Cap Taper | 2.60000 | 0.62500 | 0.7500 | 0.37500 | 3.1200 | IN | Yes |
| 264-MP3049-08 | MP3049-08 CMW | RWMA Class 2 - C18200 | 6RW | 6RW Cap Taper | 2.69000 | 0.75000 | 0.5000 | 0.43750 | 3.3000 | IN | Yes |
