16-1394 CMW

Part #: 285-16-1394

Request 3D Model

Request 3D Model

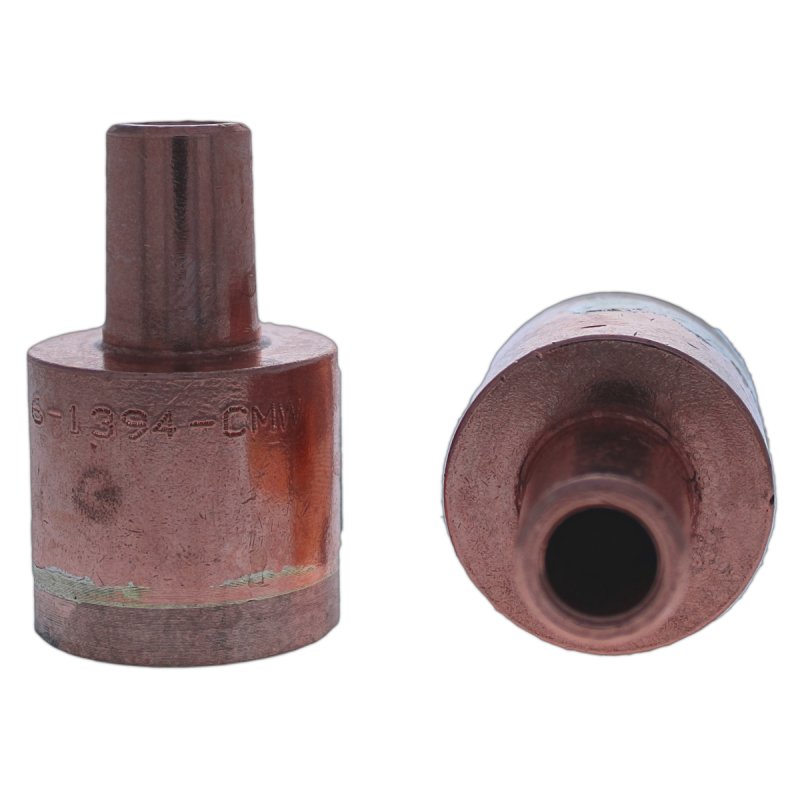

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.000 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The weld face is 1.25 IN

Specifications

Face Refractory Material RWMA Class 11 - 10W
RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Overall Length 2.00000
Weld Face Dimension 1.25
Water Hole Dia. 0.37500
Water Hole Depth 1.500
Body Length 1.1250
Taper Length 0.8750
Refractory Material Thickness 0.250
Unit of Measure IN
