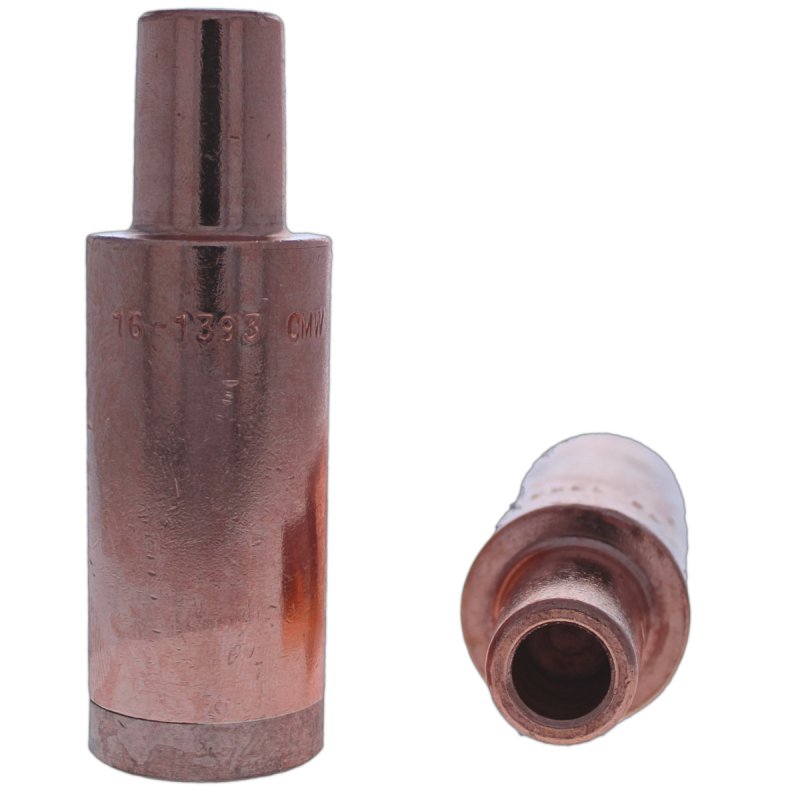

16-1393 CMW

Part #: 285-16-1393

Request 3D Model

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.000 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The weld face is 1 IN

Specifications

Face Refractory Material	RWMA Class 11 - 10W
RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW
Overall Length	3.00000
Weld Face Dimension	1
Water Hole Dia.	0.37500
Water Hole Depth	0.625
Body Length	2.1250
Taper Length	0.8750
Refractory Material Thickness	0.250
Unit of Measure	IN
