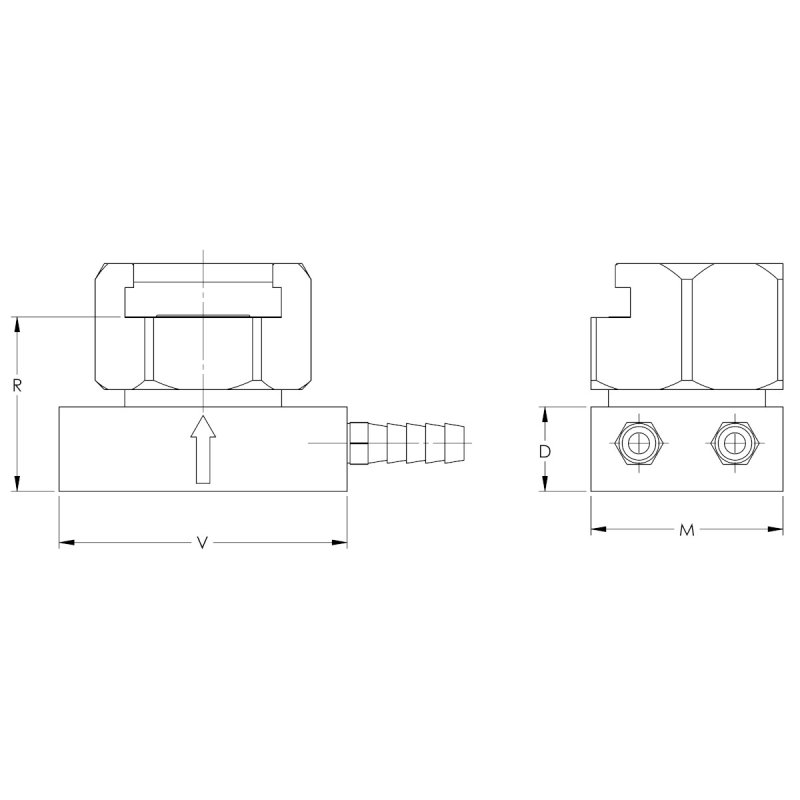

  • Sketch for 18-804 CMW

18-804 CMW

Part #: 290-18-804

Request 3D Model

Request 3D Model


The NU-TWIST Surface Mount Holder is the complete assembly. This compact holder is great for welding at pressures greater than 2,000 lbs where standard tapers are damaged. The flat bottom electrodes are easily removed by rotating the locking nut.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The electrode seats at a height of 1.813 IN from the bottom of the base.
  • The part holds a Size 4 NU-TWIST electrode
  • The base width is 2.0 IN
  • The base length is 3.0 IN
  • The part includes the Adapter Nut, Base, O-ring, and Hose Barbs.

Specifications

RWMA Material Type RWMA Class 2
Mounting Screws 1/4-20 Cap Screws
NU-TWIST Tip Size Size 4 NU-TWIST
Height of Tip from Base [P] 1.81250
Base Length [V] 3.00
Base Width [M] 2.00000
Base Thickness [D] 0.88
Unit of Measure IN
O-ring Included Yes
